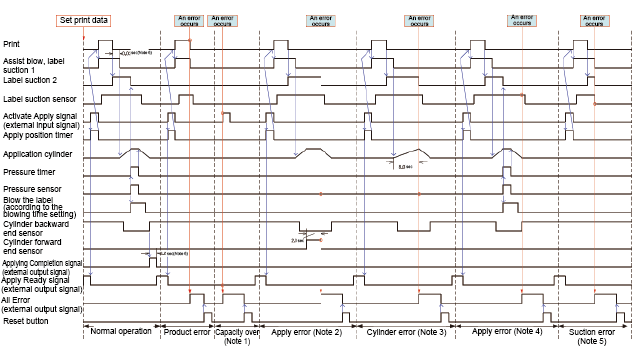

TOP > Product Specifications > Interface > Terminals for External Input/Output Signals > Timing Chart for Pressure Jet (Wait Printing) Timing Chart for Pressure Jet (Wait Printing) This timing chart is for the following conditions. Labeling format Pressure jet (PJ) Label delivery method Wait Printing Blow Action at PJ Miss Disabled • The [Apply Ready] signal output conditions are when all input devices have mechanically returned to origin normally and there is data that has been edited completely. Note 1 This error is because an [Activate Apply] signal was input when the [Apply Ready] signal was not on. Note 2 This error is because the pressure sensor does not turn on, even when the cylinder forward end sensor turns on. Note 3 This error is because the pressure sensor does not turn on, even when the cylinder has been on for 8 seconds. Note 4 Error processing is done when label suction sensor is on (a label is present) when the cylinder returns to origin (cylinder backward end sensor is on). (Label Remain Error Check Select: Return to Origin) Note 5 This error is because the label suction sensor is off (no label is present) while suction is in standby. Note 6 These are the values set for Suction Switching Check Time and Completion Output Time. Back to top
