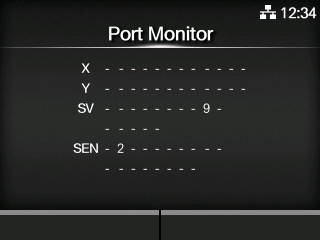

How to Use [Port Monitor]

Press the button while printing (in Online mode) to display the Adjustments mode where you can check [Port Monitor]. It shows the state of solenoids, applicator sensors, and external signals.

The positions that are on are shown on the screen.

Only signals that are on for at least one second are shown.

The displayed items are as follows:

X1 to X8

External input signals

X9 to X12

Reserved

Y1 to Y8

External output signals

Y9 to Y12

Reserved

SV1 to SV3

Reserved

SV4

Application cylinder SV

SV5

Blowing SV

SV6

Suction 1 SV

SV7

Suction 2 SV

SV8

Assist nozzle SV

SV9

Application cylinder double solenoid

SV10 to SV15

Reserved

SEN1

Suction sensor

SEN2

Cylinder backward end sensor

SEN3

Cylinder forward end sensor

SEN4

Pressing confirmation sensor

SEN5 to SEN18

Reserved

• SV indicates a solenoid valve.
