Timing Chart of the External Input Signal

Item	Input Waveform

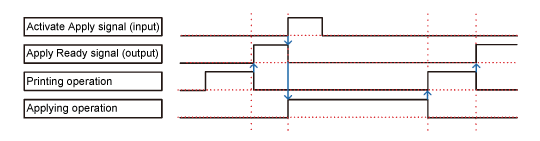

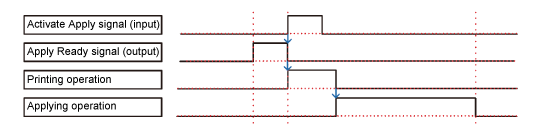

Activate Apply	Application operation (including pass operation) is done according to signal inputs. Detected by rise in the signal. 　 Delivery Method: For Print and Wait Delivery Method: For Wait Printing   • A performance overload error occurs when there is input when a label cannot be applied. (Including pass operations) • You can select [Timing] or [Position] for the position to apply the labels. • The [Activate Apply] signal changes the detection timing according to the conveyor speed and the package length settings. • If [Activation Signal Off] is set in the [Applications] > [Applicator] > [Completion Output Time] menu, the [Applying Completion] signal and the [Applying Completion (Backward)] signal remain on while this signal is on.

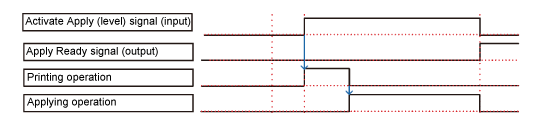

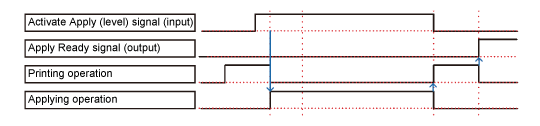

Activate Apply (Level)	Application operation (including pass operation) is done according to signal inputs. Detected by rise in the signal, and application is done when Apply Ready reaches ON level. 　 Delivery Method: For Print and Wait Delivery Method: For Wait Printing   • Keep this signal on until Applying Completion or an error occurs. • You can select [Timing] or [Position] for the position to apply the labels. • This signal does not monitor for performance overload errors. • This signal does not start the application operations even if the product is ready to apply a label as the next process when the application operation has been started and ON status is maintained. • If [Activation Signal Off] is set in the [Applications] > [Applicator] > [Completion Output Time] menu, the [Applying Completion] signal and the [Applying Completion (Backward)] signal remain on while this signal is on.

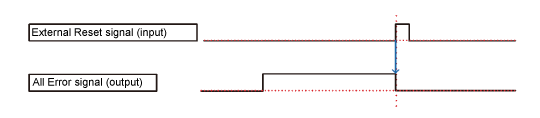

External Reset	Errors are cleared by inputting a signal when an error occurs. Detected by rise in the signal.   • If the buzzer does not sound (including the case in which the warning lamp does not light) when an error occurs, inputting this signal clears the error and confirms the initial status. • If the buzzer sounds by detecting the end of labels, inputting this signal stops the buzzer. • If the buzzer sounds when an error occurs, inputting this signal stops the buzzer.
