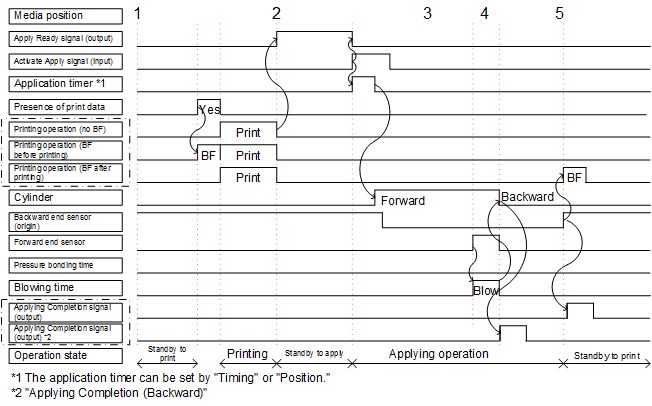

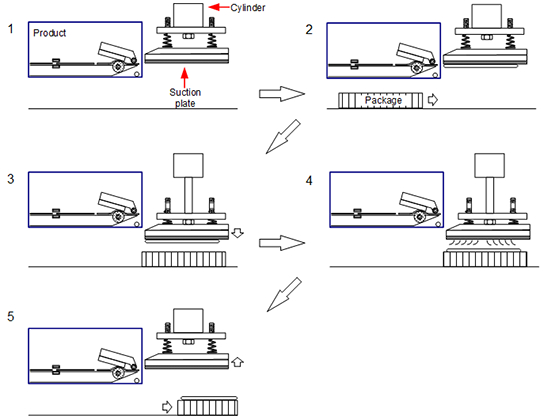

TOP > Adjusting the Product > Workflow for Application Operations > Operation 7: Pressure Jet (PJ) Method Application (Blow Action at PJ Miss: Enabled) Operation 7: Pressure Jet (PJ) Method Application (Blow Action at PJ Miss: Enabled) Operation With the pressure jet (PJ) method, if the blow action at PJ miss is enabled, after the label is delivered, the cylinder extends and the suction plate does not contact (pressure on) the package (diagram 3), when the cylinder extends to its forward end, the air blows the label on (diagram 4). After the blowing time passes, the cylinder returns (diagram 5). In this case, an Apply Error (Missed) does not occur. • The following diagram is to explain the print and wait operation. However, the operation is the same if the cylinder extends and the suction plate does not make contact when doing a wait printing operation also. PJ method: Blow action at PJ miss, print and wait Back to top
