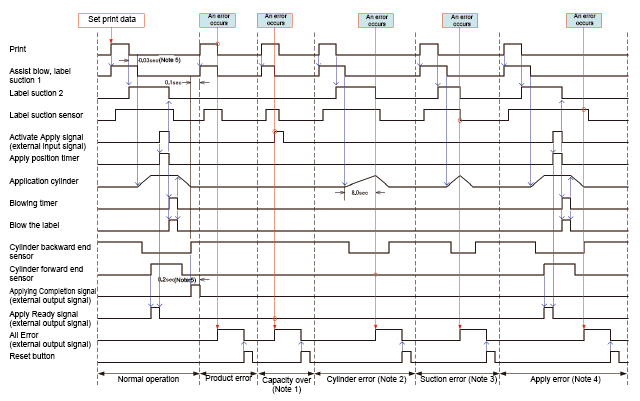

TOP > Product Specifications > Interface > Terminals for External Input/Output Signals > Timing Chart for Cylinder Jet (Print and Wait) Timing Chart for Cylinder Jet (Print and Wait) This timing chart is for the following conditions. Labeling format Cylinder jet (CJ) Label delivery method Print and Wait CJ Print and Wait Wait at Front End • Printing occurs after print data is received completely and immediately when product state is correct. Note 1 This error is because an [Activate Apply] signal was input when the [Apply Ready] signal was not on. Note 2 This error is because the cylinder forward end sensor does not turn on, even when the cylinder has been on for 8 seconds. Note 3 This error is because the label suction sensor is off (no label is present) while suction is in standby. Note 4 Error processing is done when suction check sensor is on (a label is present) when the cylinder returns to origin. (Label Remain Error Check Select: Return to Origin) Note 5 These are the values set for Suction Switching Check Time and Completion Output Time. Back to top
