[Ports]

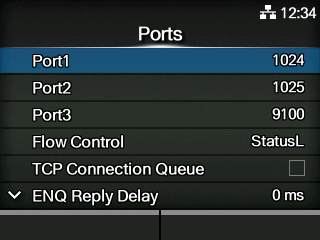

Set the TCP/IP port number.

The setting items are as follows:

Port1

Set the port number of Port1.

For the two-port connection of Status4, this port is used for receiving print data. For the one-port connection of StatusL/Status3/Status5, this port is used for both receiving print data and returning the product status.

Port2

Set the port number of Port2.

For the two-port connection of Status4, this port is used for returning the product status.

Port3

Set the port number of Port3.

For the one-port connection of StatusL/Status3/Status4/Status5, this port is used for both receiving print data and returning the product status.

Flow Control

Set the communication protocol.

TCP Connection Queue

Set whether to allow queuing for connection when multiple hosts or applications are sending connection requests to the product.

Legacy Status for Port 9100

Set whether to change the return status format of Port3 to legacy status.

◦	Does not appear if you have selected [None] or [StatusL] in the [Flow Control] menu.

ENQ Reply Delay

Set the period to delay status reply to status request ENQ.

◦	Not available if you have selected [Status4] in the [Flow Control] menu.

Status4 Cyclic Response

Set the interval for the cyclic status response.

◦	Available only if you have selected [Status4] in the [Flow Control] menu.

BCC

Set the BCC check function.

◦	Appears only if you have selected [Status5] in the [Flow Control] menu.

StatusL

Sets the status of the applicator error.

◦	Appears only if you have selected [StatusL] in the [Flow Control] menu.

Roles of Port1 to Port3

In the socket server function of TCP/IP, either of the following connection methods can be used.

The ports to be used and their roles change depending on the connection method and communication protocol.

Two-port connection

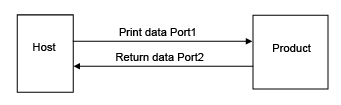

Port1 is used for receiving print data, and Port2 is used for returning the product status.

Two-port connection is available when the communication protocol is Status4.

One-port connection

One port is used for both receiving print data and returning the product status.

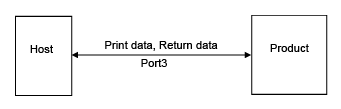

When the communication protocol is Status4, Port3 is used.

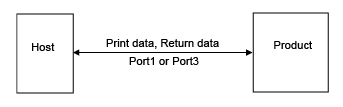

When the communication protocol is StatusL, Status3, or Status5, Port1 or Port3 is used.
