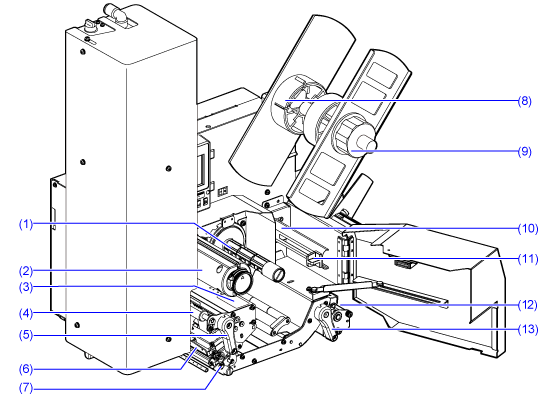

Internal View

(1) Ribbon supply spindle

(2) Ribbon rewind spindle

(3) Sticker

The product information, such as model name and serial number, is listed.

The 8-digit alphanumeric characters to the right of "S/N" are the serial number.

(4) Ribbon feed roller

(5) Head lock lever

Used to release the print head assembly.

(6) Print head (consumables)

Creates an image directly on the media or by using a ribbon. Clean the print head regularly.

(7) Platen roller (consumables)

(8) Media roll holder

Use to hang the media roll.

(9) Media stopper

Stops the media roll that is hanging on the media holder.

(10) Label damper

(11) Media guide

(12) Pressure nip roller/nip roller (consumables)

(13) Nip lock lever
