[Traps]

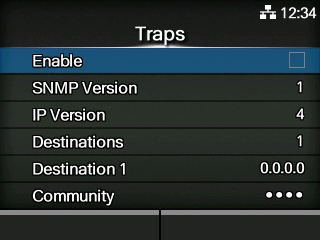

If [SNMP Version] is [1]

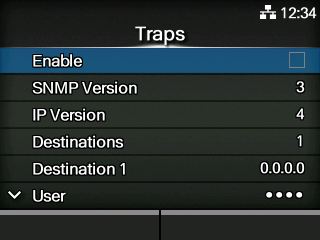

If [SNMP Version] is [3]

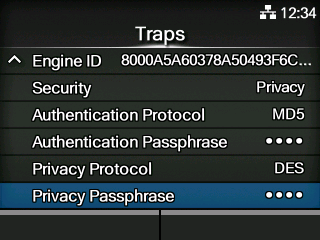

If [Security] is [Privacy]

Set the Traps function.

The setting items are as follows:

Enable

Enable the Traps function.

SNMP Version

Set the SNMP version.

IP Version

Set the IP version to use for trap destinations.

Destinations

Set the number of trap destinations.

Destination 1

Set address 1 for the trap destination.

Destination 2

Set address 2 for the trap destination.

◦	Appears only if you have selected [2] or [3] in the [Destinations] menu.

Destination 3

Set address 3 for the trap destination.

◦	Appears only if you have selected [3] in the [Destinations] menu.

Community

Set the Traps community name.

◦	Appears only if you have selected [1] or [2c] in the [SNMP Version] menu.

User

Set the Traps user name.

◦	Appears only if you have selected [3] in the [SNMP Version] menu.

Engine ID

Set the engine ID.

◦	Appears only if you have selected [3] in the [SNMP Version] menu.

Security

Set the security level.

◦	Appears only if you have selected [3] in the [SNMP Version] menu.

Authentication Protocol

Set the authentication protocol.

◦	Appears only if you have selected [Authentication] or [Privacy] in the [Security] menu.

Authentication Passphrase

Set the authentication passphrase.

◦	Appears only if you have selected [Authentication] or [Privacy] in the [Security] menu.

Privacy Protocol

Set the privacy protocol.

◦	Appears only if you have selected [Privacy] in the [Security] menu.

Privacy Passphrase

Set the privacy passphrase.

◦	Appears only if you have selected [Privacy] in the [Security] menu.
