Operation 9: Pass Operation (Wait Printing)

Operation

When a pass command is received, an [Apply Ready] signal (output) is output without printing a label, then when the [Activate Apply] signal (input) turns on, the [Applying Completion] signal (output) is output.

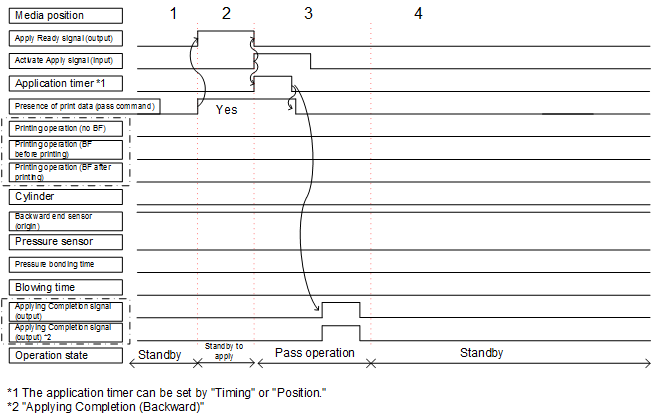

• The following diagram is to explain the cylinder/pressure jet method, but the operation is the same for all application methods.

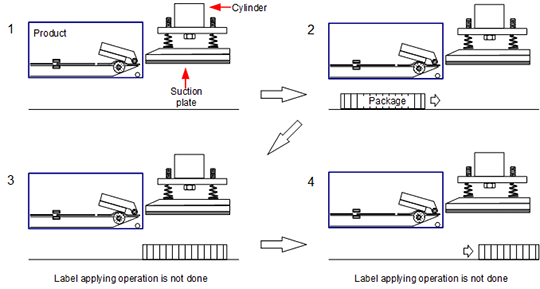

Pass operation: Wait printing, PJ
