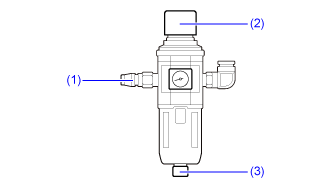

TOP > Getting Started > Connecting the Air, Warning Lamp, and Power Cord Connecting the Air, Warning Lamp, and Power Cord • Disconnect the power cord from the AC outlet before you begin connecting compressed air or warning lamps. • Do not power on or off the product, or connect or disconnect the power cord while your hands are wet. Doing so could cause an electric shock. • Always connect the ground wire to a ground terminal. Electric shock could occur if you do not. • Make sure that the AC voltage of your region is in the range of AC 100 - 240 V, 50 - 60 Hz. If your local voltage is not in the stated range, contact your SATO reseller or technical support. 1. Connect the air to the air supply inlet (1) on the air regulator. Adjust the pressure adjustment knob (2) so the pressure on the pressure meter's scale is between 0.45 and 0.5. To adjust the pressure, pull the pressure adjustment knob up and then turn it to the right or left. ◦ Turn to the right to raise the pressure ◦ Turn to the left to lower the pressure After doing the adjustments, press the knob in to lock it. • If water collects inside, turn the water drain (3) to the left to drain the water. After draining the water, turn it to the right, back to its original position. 2. Connect the warning lamp (6) to the warning lamp connector (4). 3. Connect the power cord to the AC input terminal (5). Attach the provided AC power cord clamp to the product to secure the AC power cord and prevent it from being pulled out. 4. Insert the power plug into an AC outlet. • This product is also designed for IT power distribution system with phase-to-phase voltage 230 V. Back to top
