Operation 6: Pressure Jet (PJ) Method Application (Wait Printing)

Operation

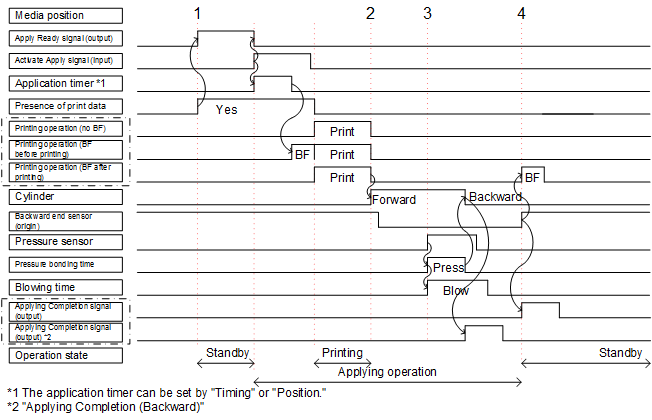

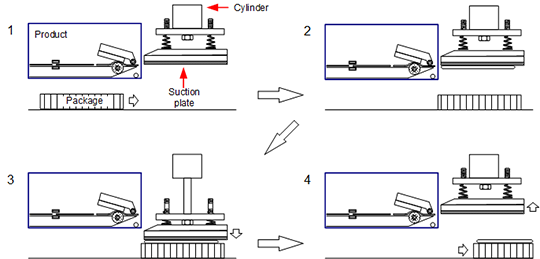

While the package is stopped, the [Activate Apply] signal (input) turns on. After the application time passes, the label is delivered and held on the suction plate that is attached to the end of the cylinder (diagram 2).

After the label is delivered, the cylinder immediately extends and presses (blows) on the label (diagram 3). After the pressure bonding time passes, the cylinder returns (diagram 4).

PJ method: Wait printing

• After pressing the label on, and after the cylinder returns, the backward end sensor turns on, and then the product waits 200 ms until printing is possible.
