Operation 3: Cylinder Jet (CJ) Method Application (Wait Printing/Wait at Front End)

Operation

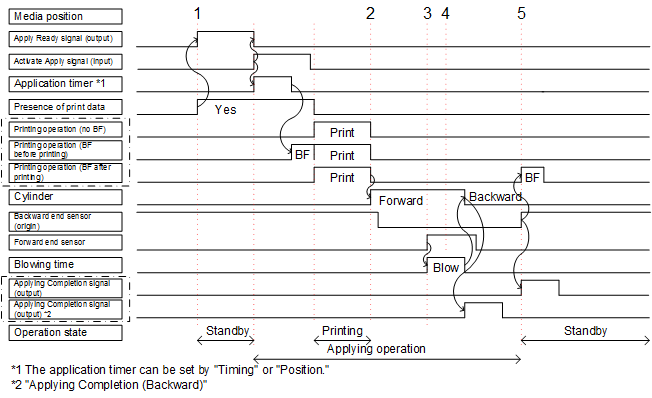

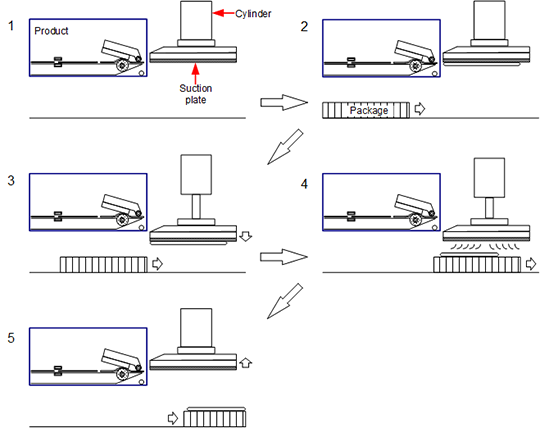

The [Activate Apply] signal (input) turns on. And then, after the application time passes, the label is delivered and held on the suction plate that is attached to the end of the cylinder (diagram 2).

After the label is delivered, the cylinder immediately extends (diagram 3). When the cylinder extends to its forward end, the air blows the label on (diagram 4). After the blowing time passes, the cylinder returns (diagram 5).

CJ method: Wait printing

• After blowing the label on, and after the cylinder returns, the backward end sensor turns on, and then the product waits 100 ms until printing starts.
