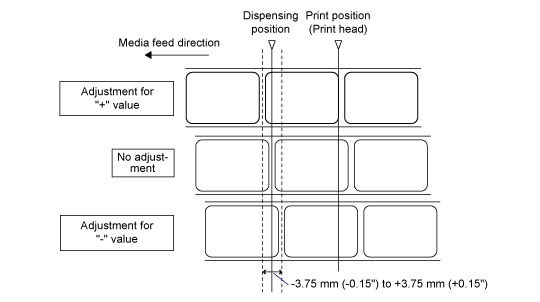

Adjusting the Dispenser Stop Position

Set the [Offset] in the [Printing] > [Advanced] > [Adjustments] menu to adjust the dispenser stop position.

• The above dispenser stop position indicates the stop position when the media sensor type is set to I-mark.

1.	When the product is in Online mode, press the button on the operator panel to change to Offline mode.

2.	Press the button to show the [Settings] menu.

3.	Select [Printing] using the / buttons, and then press the button.

4.	Select the [Advanced] > [Adjustments] > [Offset] menu using the / buttons, and then press the button.

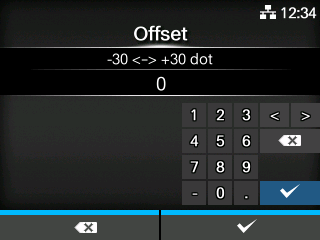

The [Offset] screen appears.

5.	Change the setting value. Press the /// buttons to select a number and then press the button to enter the number to the text box.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

6.	Press the button to save the setting value.

7.	Press the button to change to Offline mode.

8.	Press the button again to change to Online mode.

You can print to check the adjusted dispenser stop position.
