Media Sensor Positions and Media Stop Positions

The positions of the media sensors and the media stop positions with the various print modes are as follows:

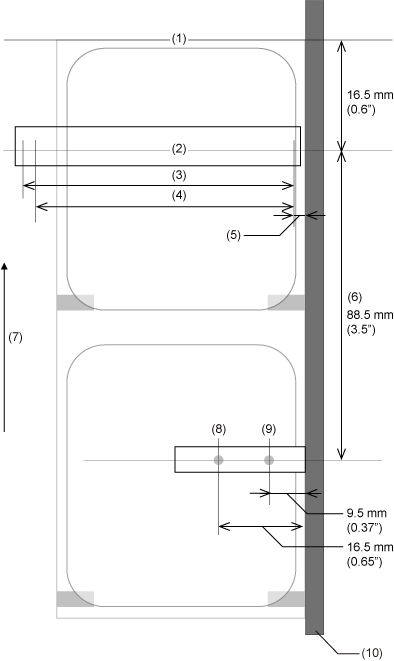

•	For left-hand type (L)

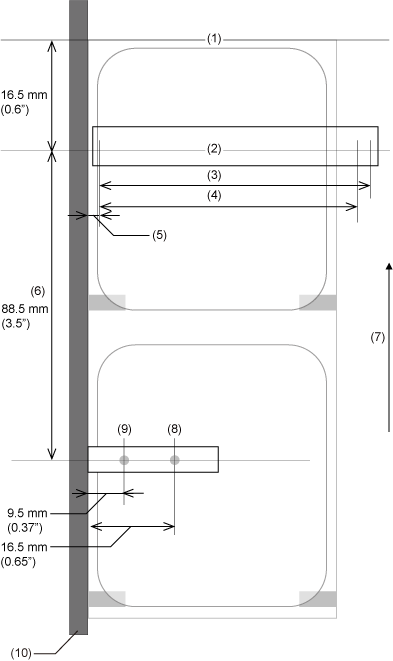

•	For right-hand type (R)

(1) Media stop position in dispenser mode

(2) Print head

(3) Head width

(4) Printable width

(5) Non-printable zone (3.0 mm / 0.12")

(6) Distance between print head and media sensor

(7) Media feed direction

(8) Gap sensor

(9) I-mark sensor

(10) Frame
