TOP > Various Settings of the Product > The Product's [Settings] Menu > [Interface] Menu > [Network] > [Advanced] > [Firewall] > [Custom Settings] > [UDP Destination Port] > [Additional Port No.]

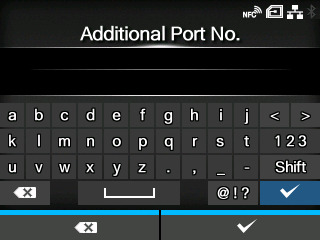

[Additional Port No.]
Register the UDP destination port number to allow communication.
The acceptable input values are as follows:
Active port number
An integer from 1 to 65535
Specifying multiple values
Delimit active port numbers using a comma “,”
Specifying a range
Create a range of active port numbers using a colon “:” (Input in the order of low port number: high port number)
Maximum number of specifications
21 ports in total by specifying with either numbers or a range
No setting
Blank

Input Example
Port number
Comments
10000
-
10000,10001,10002,10003
This results in the same ports in both settings to be allowed.
10000:10003
10000,10001,10002,10003,20000
This results in the same ports in both settings to be allowed.
10000:10003,20000
Blank
Keep it blank when no setting is needed.
