TOP > Various Settings of the Product > The Product's [Settings] Menu > [Tools] Menu > [Barcode Checker] > [Settings] > [Start Position]

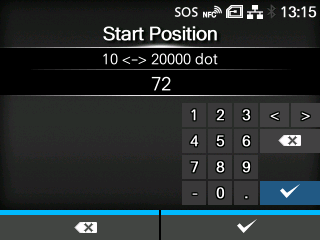

[Start Position]
Adjust the position at which the barcode check starts (position of the barcode checker at which reading starts).
The barcode checker starts reading each media after the specified length passes from the printing start position.
This setting can be used to exclude first barcode(s) from the check target when multiple barcodes are printed on each media.
The setting range varies depending on the print resolution of the product.
The setting range is as follows:
Resolution
CL4NX
CL6NX
203 dpi
(1 dot = 0.125 mm (0.0049"))
10 to 20000 dots
10 to 20000 dots
305 dpi
(1 dot = 0.083 mm (0.0033"))
15 to 18000 dots
15 to 18000 dots
609 dpi
(1 dot = 0.042 mm (0.0017"))
30 to 9600 dots
-
