TOP > Various Settings of the Product > The Product's [Settings] Menu > [Interface] Menu > [RS-232C]

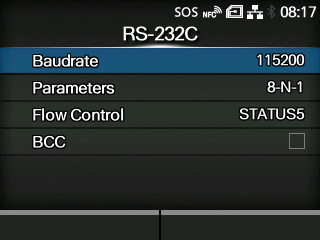

[RS-232C]
[Baudrate]
[Parameters]
[Flow Control]
[BCC]
Set the RS-232C connection.
Appears only if the combo interface board is installed.

•
When [Tools] > [Barcode Checker] > [Test] > [Interface] is set to [RS-232C Reader], the following message appears on the screen and you cannot change the [RS-232C] menus.
"Reader is set for RS232C connection destination. Please check the setting of barcode checker."
The setting items are as follows:
Baudrate
Set the communication speed.
Parameters
Set the data parameters.
Flow Control
Set the communication protocol.
BCC
Set the BCC check function.
◦
Appears only if you have selected [STATUS5] in the [Flow Control] menu.
