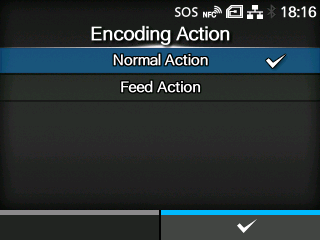

[Encoding Action]

Set the product's operations when writing data to an inlay in the position specified in [Tag Offset].

Appears when [Tag Offset] is set to something other than 0 mm (0").

The options are as follows:

Normal Action

Temporarily stops printing in the position specified in [Tag Offset], and then writes data to the inlay.

Be careful of the print layout because white streaks may occur in the stopped position.

Feed Action

Media is fed to the position specified in [Tag Offset], data is written to the inlay, and then the media is returned to the position before it was fed, and printing is done.

Cannot be selected when [Tag Offset] is set to more than 16 mm (0.63").

---

Related Topics

[Tag Offset]
