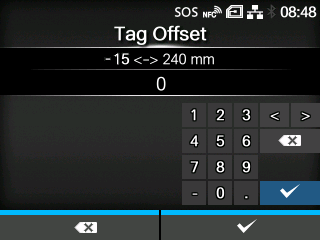

[Tag Offset]

Set distance to print on label BEFORE pausing to encode RFID according to the Inlay Configuration Guide. This setting will be used when labels are not compatible with the CL4NX’s antenna positions. For details, access the following URL:

https://www.sato-global.com/rfid/guide.html

To use inlays that are not in the Inlay Configuration Guide, contact your SATO sales representative or reseller.

The setting range varies depending on the setting for [Encoding Action].

Settings for [Encoding Action]	Setting range
[Normal Action]	-15 to +240 mm (-0.59" to 9.45")
[Feed Action]	-15 to +15 mm (-0.59" to 0.59")

The minimum value is 0 mm (0") if other than [Continuous] is selected in the [Printing] > [Print Mode] menu.

• When a minus value is set and the media position is not fixed, due to reasons such as the print head is unlocked during paper replacement, the minus offset operation is performed after feeding one tag. • When [Encoding Action] is set to [Normal Action] and the value in [Tag Offset] is -1 mm (-0.04") or less, the length of the RFID tag needs to be set accurately. Measure and set the length of the RFID tag automatically in [Label Measure Start] or set it accurately in [Pitch Size].

---
