TOP > Various Settings of the Product > The Product's [Settings] Menu > [Interface] Menu > [RFID] (CL4NX Only) > [Paper] > [Starting Point]

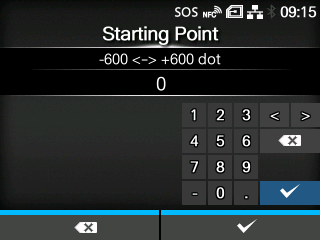

[Starting Point]
Set the print reference position of RFID tags in the vertical direction.
Set the print reference position as "+" for the direction of the paper feed and "-" for the direction opposite to the paper feed.
The setting range is from -600 to +600 dots.

•
When the direction of the paper feed is set to "+", the total length including other pitch values should not exceed 25 mm (0.98"). If it exceeds 25 mm (0.98"), the product may not stop properly.

•
The length of 1 dot varies depending on the print resolution of the product.
◦
203 dpi : 1 dot = 0.125 mm (0.0049")
◦
305 dpi : 1 dot = 0.083 mm (0.0033")
◦
609 dpi : 1 dot = 0.042 mm (0.0017")
