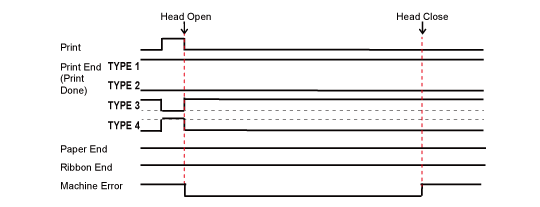

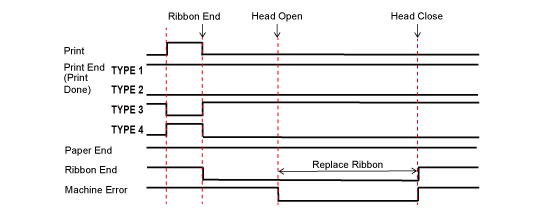

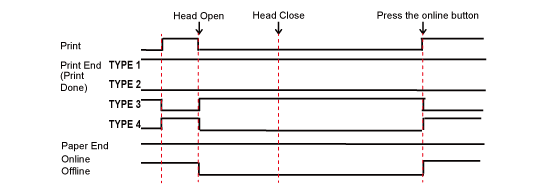

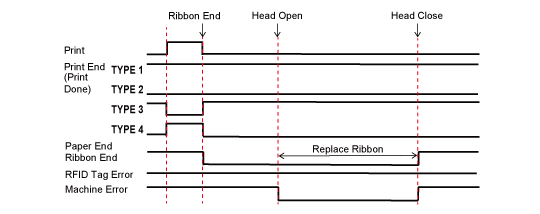

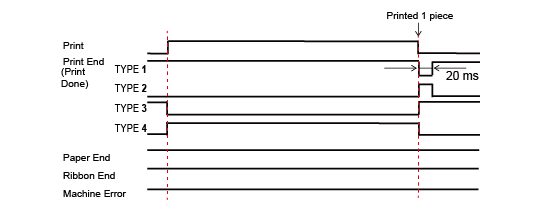

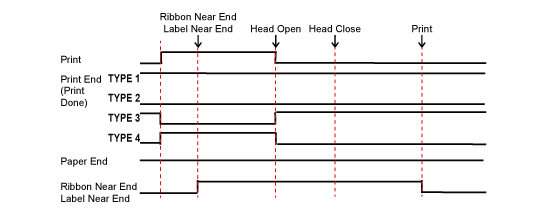

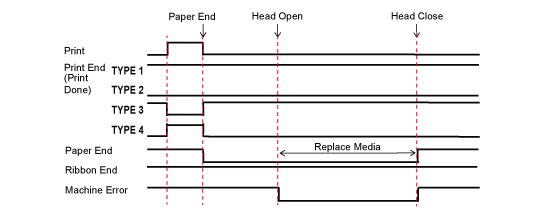

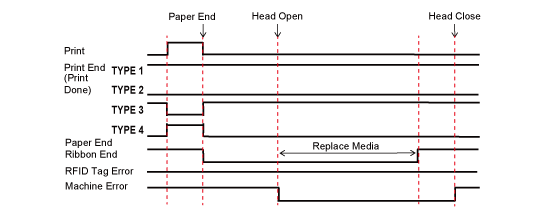

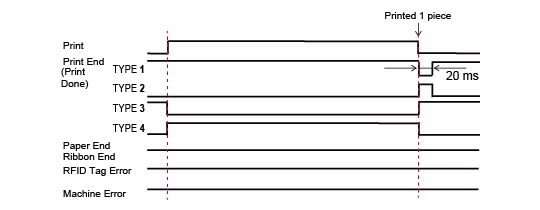

TOP > Product Specifications > Interface > External Signal (EXT) Interface > Timing Chart of the EXT Output Signal Timing Chart of the EXT Output Signal Standard Specification Item Output Waveform Basic Operation Paper End Ribbon End Machine Error Ribbon Near End/Label Near End *Label Near End is supported on products from serial number 6B~ and above. Online/Offline If RFID Mode Is Enabled (CL4NX only) Item Output Waveform Basic Operation Paper End Ribbon End Back to top
