[VOID Print]

Set whether to print error marks on the media when a barcode reading error or barcode comparison error occurs.

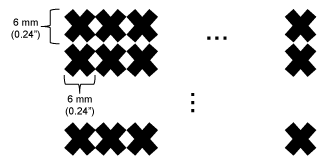

6 x 6 mm (0.24" x 0.24") error marks are printed within the width of the print data image and in a length of up to 30 mm (1.18") from the trailing end of the label. The length varies depending on the image length of the print data and the operation mode.

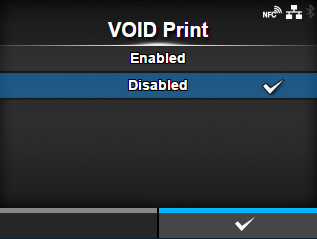

The options are as follows:

Enabled

If a reading error or comparison error occurs, the product prints error marks on the label without pausing.

After VOID printing, the product prints and checks the same label until it reaches the number of retries specified in [Retry Count]. If the error still occurs after the specified number of retries are done, the product pauses after VOID printing, and shows an error message on the display.

Disabled

If a reading error or comparison error occurs, the product pauses and shows an error message on the display.

• The VOID Print function is not supported in dispenser and linerless (CL4NX only) modes. • The VOID Print function is not available when the length of the print data is less than 8 mm (0.31"). • The VOID printing length becomes 4 mm (0.16") shorter when the media sensor type is set to [Gap]. • The VOID printing length becomes 1 mm (0.04") shorter when the media sensor type is set to [I-Mark]. • The backfeed amount of VOID printing is 30.0 mm (1.18"). However, if the image length printed on the label to be checked is less than 30.0 mm (1.18"), the backfeed amount will be the same as the image length. • When [VOID Print] is set to [Enabled], VOID printing is forcibly done if a comparison error occurs, even when no cutting is performed in cutter mode.

---
