Adjusting the Media Stop Position

Set the [Offset] in the [Printing] > [Advanced] > [Adjustments] menu to adjust the media stop position (for cutter/dispenser/tear-off mode).

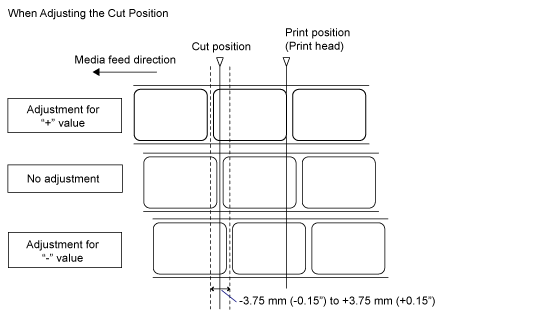

• The above cut position becomes the stop position when the sensor type is set to transmissive (Gap). • You can also adjust when the print mode is specified to tear-off or dispenser.

1.	Tap [SETTINGS] on the Home screen or Offline screen.

2.	Input the password if it is enabled.

3.	Tap [Printing].

4.	Tap [Advanced] > [Adjustments] > [Offset].

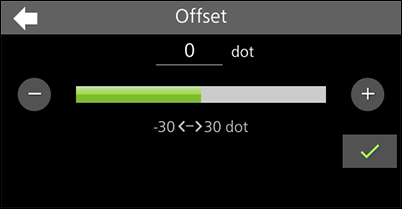

5.	Change the setting value.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

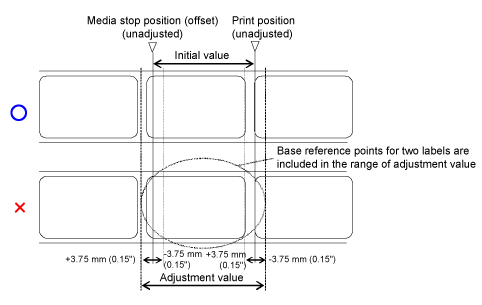

• Do not allow the distance between [Pitch] and [Offset] after adjustments to exceed the size of 1 label (including liner). • You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu.

6.	Tap to save the setting value.

7.	Press the (Power/Home) button to show the Home screen.

8.	Press the (Power/Home) button to go to Online mode.

You can print to check the adjusted stop position.

• While the print job is paused, the [Adjustments] menu appears instead of the [SETTINGS] menu and you can adjust the media stop position.

---
