Operations in the Panel That Is Displayed by Swiping the Screen

In the panel that is displayed by swiping the screen, you can adjust the volume and brightness of the LCD, feed the media, or see the login information of the SATO App Storage application you are running.

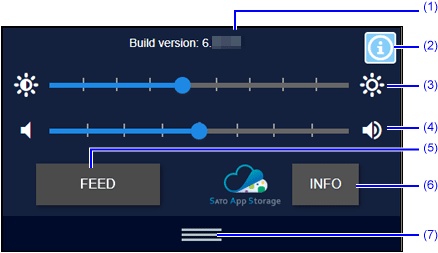

To open the panel, swipe down from the top of the screen.

(1) Shows the build version of the product.

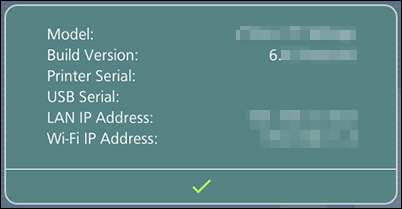

(2) Tap the icon to display the product information.

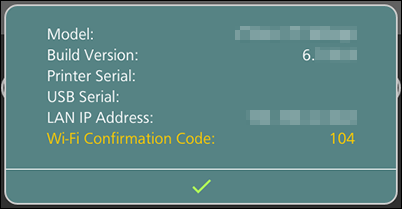

• IPv4 address for LAN and wireless LAN appears only if the respective interfaces are enabled; IPv6 address does not appear. • When Wi-Fi Direct is active, the Wi-Fi Direct IP address appears instead of the IPv4 address of the wireless LAN.

(3) Slide the bar to adjust the brightness of the LCD.

You can do the settings equivalent to [System] > [LCD Brightness] in the Settings mode.

(4) Slide the bar to adjust the volume.

You can do the settings equivalent to [System] > [Sound] > [Volume] in the Settings mode.

• You can do the settings equivalent to [System] > [Sound] > [Bluetooth Volume] while a Bluetooth device, such as a headset, is connected.

(5) Feed the media.

(6) Tap [INFO] to see login information and the access time to SATO App Storage.

The SATO App Storage icon and [INFO] appear when running an application which is set to enable automatic application update via SATO App Storage.

(7) Close the panel.

---
