[Settings]

Set the LAN.

The setting items are as follows:

[LAN]

Set IPv4 or IPv6, the TCP/IP port number, and a proxy for the LAN.

The setting items are as follows:

[IPv4]

Set the IPv4 for the LAN.

• After finishing the settings, tap . After a message asking you whether to save the settings appears, tap . • Tap to discard the changes. Tap on the message to confirm you want to discard the changes.

• You cannot change [IP Address], [Netmask], [Gateway], or [DNS] if [Mode] is [DHCP].

The setting items are as follows:

[Mode]

Select the IP address assignment method.

The options are as follows:

DHCP

Automatically retrieve the IP address, subnet mask address, default gateway address, and DNS server address from the DHCP server.

Static

Manually set the IP address, subnet mask address, default gateway address, and DNS server address.

[DHCP]

Update the lease time and get the IP address from the DHCP server again.

Available only if you have selected [DHCP] in the [Mode] menu.

[IP Address]

Set and check the IP address.

If you have selected [DHCP] in the [Mode] menu, the screen shows the IP address you received from the DHCP server.

If you have selected [Static] in the [Mode] menu, set the IP address.

The setting range is as follows:

000.000.000.000 to 255.255.255.255

[Netmask]

Set and check the subnet mask address.

If you have selected [DHCP] in the [Mode] menu, the screen shows the subnet mask address you received from the DHCP server.

If you have selected [Static] in the [Mode] menu, set the subnet mask address.

You can set each group of the address from among 0, 128, 192, 224, 240, 248, 252, 254 and 255.

The setting range is as follows:

128.000.000.000 to 255.255.255.254

[Gateway]

Set and check the default gateway address.

If you have selected [DHCP] in the [Mode] menu, the screen shows the gateway address you received from the DHCP server.

If you have selected [Static] in the [Mode] menu, set the default gateway address.

The setting range is as follows:

000.000.000.000 to 255.255.255.255

• The gateway address set here is shared with the settings in [Wi-Fi] > [Wi-Fi Setting] > [IPv4].

[DNS]

Set and check DNS server addresses.

If you have selected [DHCP] in the [Mode] menu, the screen shows the DNS server address you received from the DHCP server.

If you have selected [Static] in the [Mode] menu, set the address of the DNS server.

The setting range is as follows:

000.000.000.000 to 255.255.255.255

• You can register up to three IP addresses for the DNS server. Use a comma to delimit different IP addresses. • The DNS server address set here is shared with the settings in [Wi-Fi] > [Wi-Fi Setting] > [IPv4].

[IPv6]

Set the IPv6 for the LAN.

• After finishing the settings, tap . After a message asking you whether to save the settings appears, tap . • Tap to discard the changes. Tap on the message to confirm you want to discard the changes.

• You cannot change [IP Address], [Prefix Length], [Gateway], or [DNS] if [Mode] is anything other than [Static].

The setting items are as follows:

[Mode]

Select the IP address assignment method or disable IPv6.

The options are as follows:

Disable

Disable IPv6.

Auto

Automatically generate the IP address, prefix length, default gateway address, and DNS server address (stateless mode).

DHCP

Automatically acquire the IP address, prefix length, default gateway address, and DNS server address from the DHCP server (stateful mode).

Static

Manually set the IP address, prefix length, default gateway address, and DNS server address.

[DHCP]

Update the lease time and get the IP address from the DHCP server again.

Available only if you have selected [DHCP] in the [Mode] menu.

[IP Address]

Set and check the IP address.

If you have selected [Auto] or [DHCP] in the [Mode] menu, the screen shows the IP address you acquired.

If you have selected [Static] in the [Mode] menu, set the IP address.

The setting range is as follows:

0:0:0:0:0:0:0:1 to ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff

[Prefix Length]

If you have selected [Static] in the [Mode] menu, set the prefix.

The setting range is from 1 to 128.

[Gateway]

Set and check the default gateway address.

If you have selected [Auto] or [DHCP] in the [Mode] menu, the screen shows the gateway address you acquired.

If you have selected [Static] in the [Mode] menu, set the default gateway address.

The setting range is as follows:

0:0:0:0:0:0:0:0 to ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff

• The gateway address set here is shared with the settings in [Wi-Fi] > [Wi-Fi Setting] > [IPv6].

[DNS]

Set and check the address of the primary DNS server.

If you have selected [Auto] or [DHCP] in the [Mode] menu, the screen shows the DNS server address you acquired.

If you have selected [Static] in the [Mode] menu, set the address of the DNS server.

The setting range is as follows:

0:0:0:0:0:0:0:0 to ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff

• You can register only one IP address for the DNS server for IPv6. • The DNS server address set here is shared with the settings in [Wi-Fi] > [Wi-Fi Setting] > [IPv6].

[Ports]

Set the TCP/IP port number.

If AEP mode is enabled, there are only two ports available for LAN and wireless LAN connections.

If AEP mode is enabled and the wireless LAN interface is being used, set the port settings in this menu. The [Wi-Fi] > [Wi-Fi Setting] > [Ports] menu becomes unavailable under this condition.

Roles of Port1 to Port3

In the socket server function of TCP/IP, either of the following connection methods can be used.

The ports to be used and their roles change depending on the connection method and communication protocol.

Two-port connection

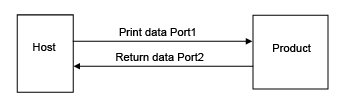

•	If AEP mode is disabled (initial value)

Port1 is used for receiving print data, and Port2 is used for returning the product status.

Two-port connection is available when the communication protocol is STATUS4.

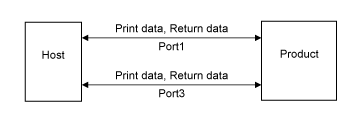

•	If AEP mode is enabled

Port1 and Port3 can be used for both receiving print data and returning the product status. Port2 cannot be used.

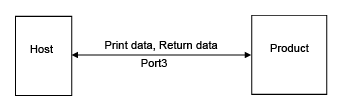

One-port connection

One port is used for both receiving print data and returning the product status.

When the communication protocol is STATUS4, Port3 is used.

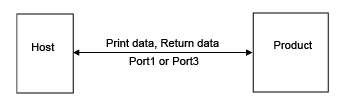

When the communication protocol is STATUS3 or STATUS5, Port1 or Port3 is used.

• AEP does not support STATUS3, STATUS4, or STATUS5.

The setting items are as follows:

[Port1]

Set the port number for Port1.

If AEP mode is disabled, and while in the two-port connection of STATUS4, this port is used for receiving print data. While in the one-port connection of STATUS3/STATUS5, this port is used for both receiving print data and returning the product status.

While in the two-port connection in AEP mode, this port can be used for both receiving print data and returning the product status.

The setting range is from 1 to 65535.

• Set different values for each port (1, 2, and 3). • Set a port number not used by other services. If port numbers that overlap with those used by other services are used, communication cannot be performed properly.

• AEP does not support STATUS3, STATUS4, or STATUS5.

[Port2]

Set the port number for Port2.

While in the two-port connection of STATUS4, this port is used for returning the product status.

The setting range is from 1 to 65535.

• Set different values for each port (1, 2, and 3). • Set a port number not used by other services. If port numbers that overlap with those used by other services are used, communication cannot be performed properly.

• The setting is disabled if [AEP] is enabled.

[Port3]

Set the port number for Port3.

If AEP mode is disabled, and while in the one-port connection of STATUS3/STATUS4/STATUS5, this port is used for both receiving print data and returning the product status.

While in the two-port connection in AEP mode, this port can be used for both receiving print data and returning the product status.

The setting range is from 1 to 65535.

• Set different values for each port (1, 2, and 3). • Set a port number not used by other services. If port numbers that overlap with those used by other services are used, communication cannot be performed properly.

• You can change the return status format of Port3 to compatible mode by enabling [Legacy Status for Port 9100]. • AEP does not support STATUS3, STATUS4, or STATUS5.

[Flow Control]

Set the communication protocol.

The options are as follows:

•

[STATUS4]

•	[STATUS4 ENQ]

•

[STATUS3]

•

[STATUS5]

•

[NONE]

[TCP Connection Queue]

Set whether to allow queuing for connection when multiple hosts or applications are sending connection requests to the product.

While connecting with one host or application, the product can receive connection requests from other hosts or applications. The subsequent connection requests are put on hold, and processed in order of reception after the first connection is closed.

While connecting with one host or application, the product cannot receive connection requests from other hosts or applications.

• When you have enabled the setting, be sure to use one port connection for STATUS3, STATUS4, and STATUS5. Operation using two port connections for STATUS4 is not guaranteed.

[Legacy Status for Port 9100]

Set whether to change the return status format of Port3 to compatible mode.

Does not appear if you have selected [NONE] in the [Flow Control] menu.

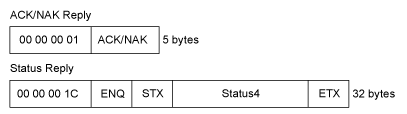

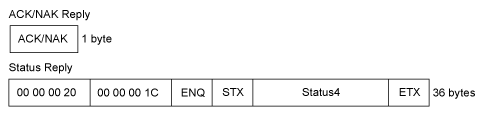

In compatible mode, the return status format of Port3 becomes as follows:

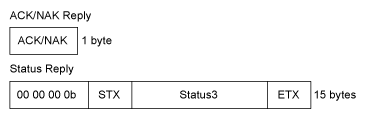

STATUS3

(Compatible mode)

(Standard mode)

STATUS4

(Compatible mode)

(Standard mode)

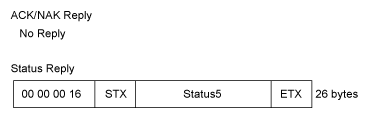

STATUS5

(Compatible mode)

(Standard mode)

[BCC]

Enable or disable the BCC check function.

Available only if you have selected [STATUS5] in the [Flow Control] menu.

[Delay Reply ENQ]

Set the period to delay status reply to status request command ENQ.

This can be set only if you have selected anything other than [STATUS4] in the [Flow Control] menu.

The setting range is from 0 to 9999 ms.

• Normally, keep this setting at the initial value.

[Status4 Cyclic Response]

Set the interval for the cyclic status response.

This can be set only if you have selected [STATUS4] in the [Flow Control] menu.

The setting range is from 100 to 999 ms.

[Proxy]

Set a proxy.

• The proxy set here is shared with the settings in [Wi-Fi] > [Wi-Fi Setting] > [Proxy]. • A message prompting you to restart the product will appear on the Home screen if you have made any changes. In such a case, reboot the product to apply the settings.

The setting items are as follows:

[Enabled]

Enable or disable use of proxy.

• To enable a proxy, you need to set [Server] and [Exclude].

[Server]

Set the name or IP address of the proxy server.

Example: http://192.168.1.11

• Specify a format for the IP address that starts with http. Addresses that start with https cannot be used.

• Server should be set with a valid name or IP address. • Hold "." to input a colon (:).

[Port No.]

Set the port number that allows communication with the proxy server.

The setting range is from 0 to 65535.

• Set a port number not used by other services. If port numbers that overlap with those used by other services are used, communication cannot be performed properly.

• To set the port number, [Server] should be set. • When set to 0, the setting will be blank and no port number will be specified.

[Username]

Set the username if you need a username to connect to the proxy server.

You can enter 1 to 8 characters. Alphabets (capital and small letters) and numbers can be used.

• To set the username, [Server] should be set.

[Password]

Set the password if you need a password to connect to the proxy server.

You can enter 1 to 16 characters. Alphabets (capital and small letters), numbers and symbols can be used.

• Some symbols cannot be used. If you enter a symbol that cannot be used, [Invalid value] appears on the screen.

• To set the password, [Server] should be set.

[Exclude]

Set names, IP addresses or domains for the proxy to exclude.

• Because this setting needs to include "127.0.0.1" and "localhost", these 2 items are already input when the setting screen appears. You can add values delimited by commas.

[DHCP Options]

Set the DHCP options for the LAN.

[DHCP Options] can be set only if you have selected [DHCP] in the [IPv4] > [Mode] menu or [IPv6] > [Mode] menu.

The setting items are as follows:

[Update DNS (Option 81)]

Enable or disable the use of DHCP server option 81.

The options are as follows:

Enable the use of DHCP server option 81.

Disable the use of DHCP server option 81.

[Hostname]

Set the hostname.

You can enter 0 to 255 characters. Alphabets (capital and small letters), numbers and symbols can be used.

• Some symbols cannot be used. If you enter a symbol that cannot be used, [Invalid value] appears on the screen.

• Periods can be input only as delimiter text. • If left blank, the setting is disabled.

---
