Adjusting the Position of the Label Top Sensor

When the Label Waste Prevention function is enabled, the label top sensor, which is located at the media discharge outlet, detects the leading edge of the media and aligns the media to the print start position.

The print start position may be misaligned because of the media width or media type. Adjust [Label Top Sensor] in the [Printing] > [Advanced] > [Adjustments] menu.

1.	Tap [SETTINGS] on the Home screen or Offline screen.

2.	Input the password if it is enabled.

3.	Tap [Printing].

4.	Tap [Advanced] > [Adjustments] > [Label Top Sensor].

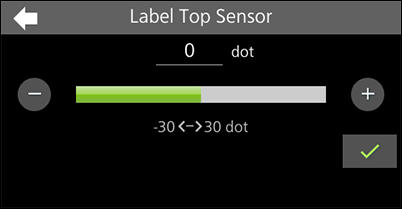

5.	Change the setting value.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

• You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu.

6.	Tap to save the setting value.

7.	Press the (Power/Home) button to show the Home screen.

8.	Press the (Power/Home) button to go to Online mode.

Execute printing so you can check the adjusted print start position.

• While the print job is paused, the [Adjustments] menu appears instead of the [SETTINGS] menu and you can adjust the position of the label top sensor.

---
