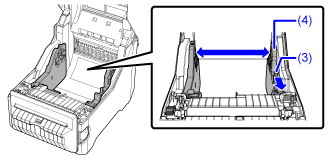

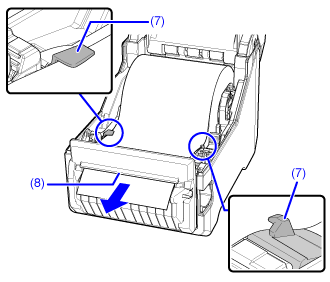

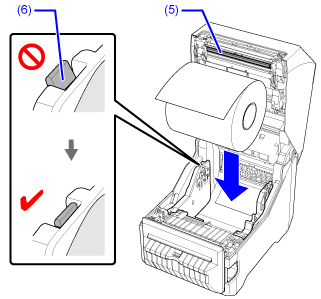

TOP > Loading Media and Ribbon > Loading Media > Loading a Media Roll (When the Optional Linerless Cutter Unit Is Installed) Loading a Media Roll (When the Optional Linerless Cutter Unit Is Installed) • The print head and its surroundings are hot after printing. Be careful not to get burned. • Touching the edge of the print head with your bare hand could cause injury. • Be careful not to touch the cutter blade. 1. Press the cover open latch (1) to open the top cover (2). 2. While pulling the slide lever (3), move the right side media guide (4) to adjust the width of the media guide to match the width of the media. 3. Load the media roll. Load the media roll from above so the print side faces the print head (5). If the media roll is loaded correctly, the flaps (6) stand up. 4. Pull the media out from the product so it goes under the left and right tabs (7), and pass it through the media discharge outlet (8). 5. Close the top cover. Push both ends of the top cover, and close it firmly until it clicks. • When closing the top cover, be careful not to pinch your fingers. 6. Tap [FEED] to feed the media to the print start position. 7. Tap [GO ONLINE] to change the product to Online mode. Related Topics Adjusting the Media Stop Position Back to top
