[Graphic Conversion]

This utility provides conversion functions from raster graphics files (*.BMP; *.GIF; *.JPG; *.PNG) into SBPL commands.

• The converted image will be a monochrome image regardless the original was a color image.

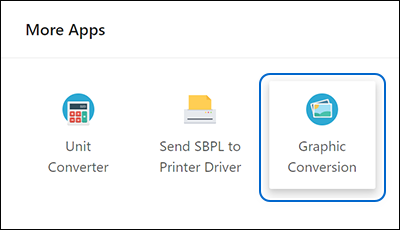

1.	Click [More Apps].

2.	Click [Graphic Conversion].

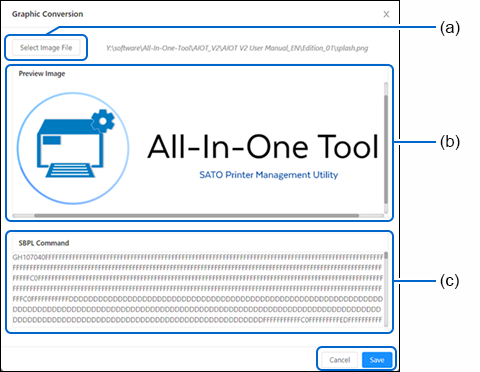

The [Graphic Conversion] dialog is shown.

3.	Click [Select Image File] (a) to select the image file to be converted.

The selected image is shown in the [Preview Image] box (b).

The appropriate SBPL commands for printing the file will be shown in the [SBPL Command] text box (c).

4.	Click [Save] to save the commands into a file, or click [Cancel] to end the conversion.

　

---
