Install Package

This feature allows you to install an AEP package on the printer and apply a clone configuration using one of the following file extensions:

•	.pkg (most printers)

•	.tar.gz.gpg.asc (CL4-SXR/CL6-SXR series only)

•	.tar.gz.gpg.asc and .cln (CL4-SXR/CL6-SXR series with firmware version 10.1.x or later)

The authorized SATO technical personnel can also install the printer firmware or firmware patch to the printer. Please contact your SATO reseller or technical support center if you need to install any firmware to the printer.

1.	On the printer page, click [Others] > [Tools] of the selected printer.

The [Tools] menu is shown.

2.	Click the [Install Package] tab.

The [Install Package] menu is shown.

3.	Click the file insert box (a) to select the package file for the installation.

4.	Click [Install].

A confirmation dialog is shown.

5.	After confirming, click [Yes] to proceed.

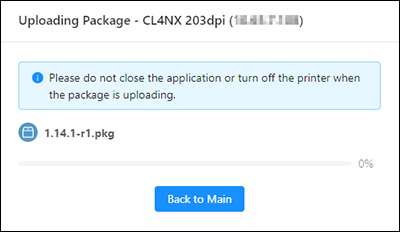

The package upload starts. A progress bar shows the upload progress.

• You can select [Back to Main] while the package upload continues. To check the upload progress, go to [Notifications].

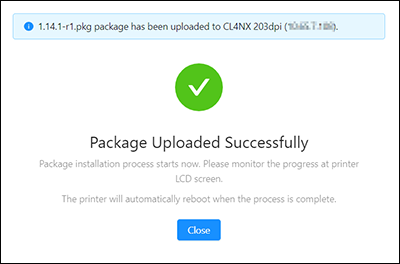

6.	After the package file is uploaded to the printer successfully, package installation starts.

The printer will reboot automatically when the installation is completed.

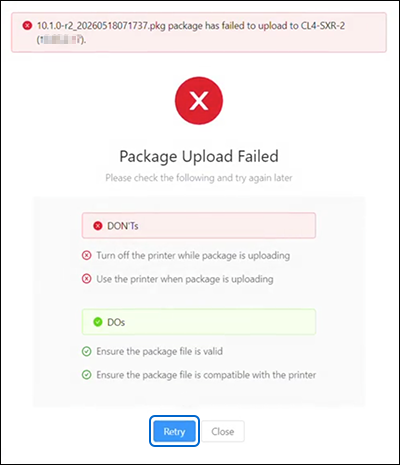

• If the package fails to upload, check the information on the screen. Click [Retry] to upload the package again.

　

---
