Loading the Media Roll

View the video here (it has no audio).

•	For CL4NX Plus

•	For CL6NX Plus

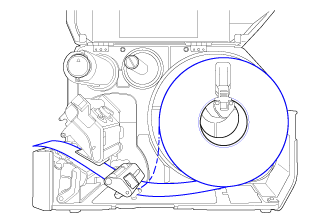

• The routing path of the media is shown in the below picture. Face-in media Face-out media

　

View the video below for the procedure.

CL4NX Plus

CL6NX Plus

1.	Open the top cover (1).

• Open the top cover fully to prevent accidental drop of the cover.

2.	Push the head lock lever (2) towards the rear.

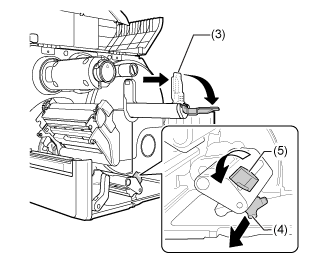

3.	Pull the media holder guide (3) and media guide (4) away from the product.

Turn the knob (5) counterclockwise to release the media guide.

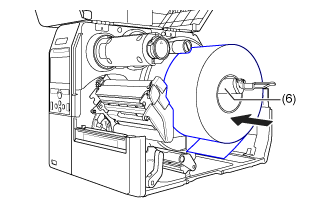

4.	Load the media in the media holder (6).

Make sure that the media roll is all the way in towards the inside of the product.

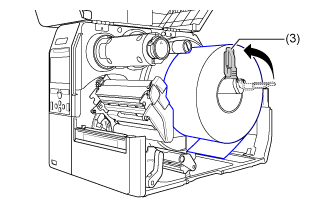

5.	Push the media holder guide (3) lightly against the media roll.

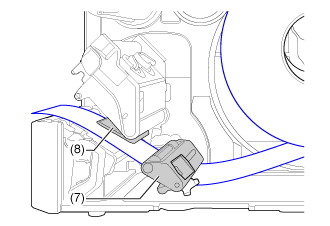

6.	Pass the media below the media damper (7) and the media sensor guide (8) while pushing the media to inside of the product.

Make sure that the end of the media extends out the front of the product.

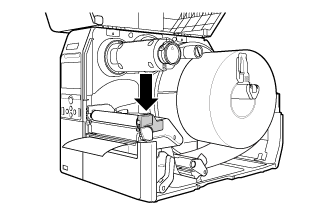

7.	Press the print head down until the head lock lever is locked.

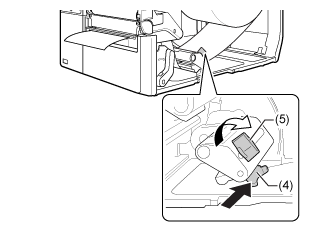

8.	Press the media guide (4) lightly against the end of the media, and turn the knob (5) to lock the media guide.

9.	Close the top cover.

• When closing the top cover, be careful not to pinch your fingers.

10.	Press the button (FEED) in Offline mode to feed the media.

11.	Press the button (ONLINE) to change to Online mode.

• You need to load the ribbon when printing using thermal transfer.

---

Related Topics

Loading Ribbon (Thermal Transfer Only)
