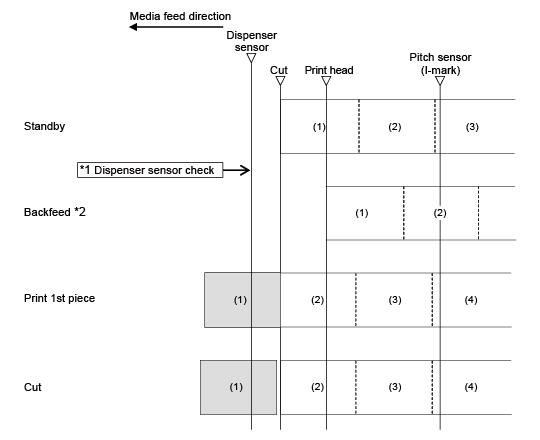

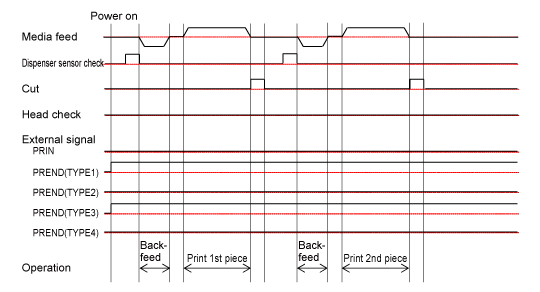

TOP > Adjusting the Product > Flow of Printing Operations > Operations in Linerless Mode (CL4NX Plus Only) > Linerless Mode, Backfeed Before Printing, and Without Pulse Input (Head Check Disabled) (CL4NX Plus Only) Linerless Mode, Backfeed Before Printing, and Without Pulse Input (Head Check Disabled) (CL4NX Plus Only) Operation *1 The dispenser sensor confirms the dispensing condition and the product does not perform the next operation until the label is dispensed. *2 The backfeed speed becomes 2 inches/sec (50.8 mm/sec) immediately after powering on the product, immediately after backing from the sleep mode, or after 60 minutes or more from the last printing. • The figure above shows the reference position when the I-mark sensor is used. Timing Chart Back to top
