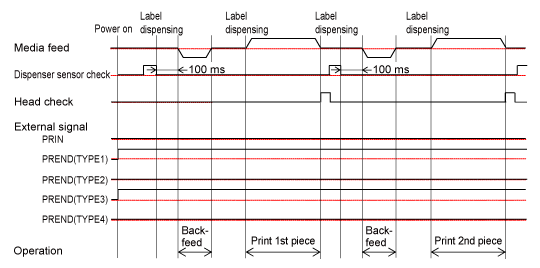

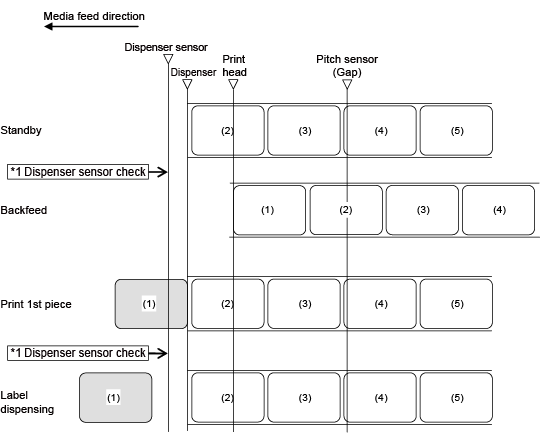

TOP > Adjusting the Product > Flow of Printing Operations > Operations in Dispenser Mode > Dispenser Mode, Backfeed Before Printing, and Without Pulse Input (Head Check Enabled) Dispenser Mode, Backfeed Before Printing, and Without Pulse Input (Head Check Enabled) Operation *1 The dispenser sensor confirms the dispensing condition and the product does not perform the next operation until the label is dispensed. • The figure above shows the reference position when the Gap sensor is used. Timing Chart Back to top
