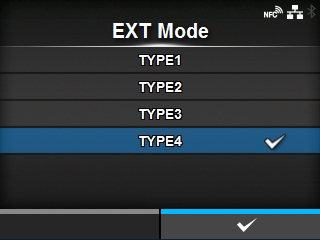

TOP > Various Settings of the Product > The Product's [Settings] Menu > [Interface] Menu > [External I/O] > [Signals] > [EXT Mode] [EXT Mode] Set the mode of the Print End signal. The options are as follows: TYPE1 20 ms "LOW" pulse will be provided after the completion of print and dispense for the Print End signal (PREND). TYPE2 20 ms "HIGH" pulse will be provided after the completion of print and dispense for the Print End signal (PREND). TYPE3 The Print End signal (PREND) will be "LOW" during label printing and feed forwarding. TYPE4 The Print End signal (PREND) will be "HIGH" during label printing and feed forwarding. • For details, refer to the Timing Charts. Related Topics External Signal (EXT) Interface Back to top
