[Wi-Fi]

Set the wireless LAN.

Appears only if you have installed the optional wireless LAN.

• After doing the settings, press the button to enable the new settings. Press the button to cancel the new settings and return to the previous settings.

• When [Wi-Fi Direct] is active, [IPv6] and [Wi-Fi Protected Setup] do not appear on the screen.

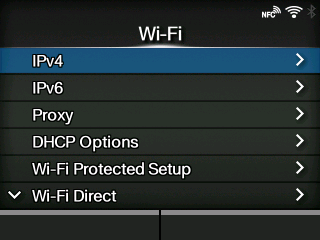

The setting items are as follows:

IPv4

Configure IPv4 for Wi-Fi.

IPv6

Configure IPv6 for Wi-Fi.

Proxy

Configure the proxy for Wi-Fi.

DHCP Options

Configure the DHCP options for Wi-Fi.

Wi-Fi Protected Setup

Set the wireless LAN connection with the Wi-Fi Protected Setup (WPS) function.

Wi-Fi Direct

Set the Wi-Fi Direct function.

◦	Enabled only if you have selected [Infrastructure] in the [Mode] menu.

Band

Set the band.

◦	Enabled only if you have selected [Infrastructure] in the [Mode] menu.

SSID

Set the SSID.

Hidden SSID

Set the hidden SSID.

◦	Appears only if you have selected [Infrastructure] in the [Mode] menu.

Mode

Set the communication mode.

Channel

Set the communication channel.

Security

Set the security (encryption method).

WEP Conf.

Set the WEP key.

◦	Appears only if you have selected [WEP] in the [Security] menu.

WPA Conf.

Set the WPA authentication.

◦	Appears only if you have selected [WPA2/WPA] or [WPA2] in the [Security] menu.

EAP Conf.

Set the EAP authentication.

◦	Appears only if you have selected [Dynamic WEP] in the [Security] menu.
