Timing Chart of the EXT Output Signal
Standard Specification
Item
Output Waveform

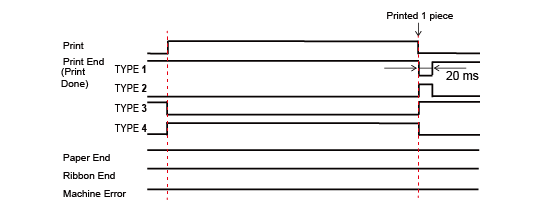

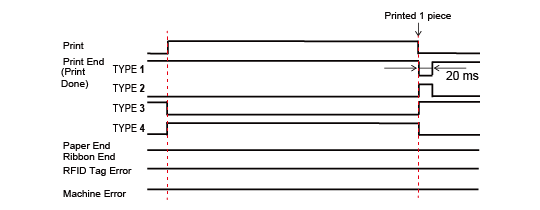

Basic Operation

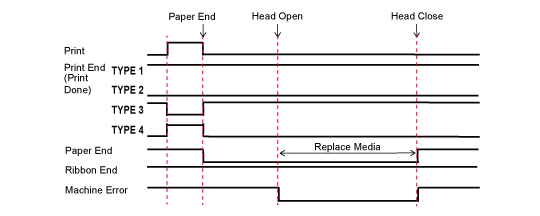

Paper End

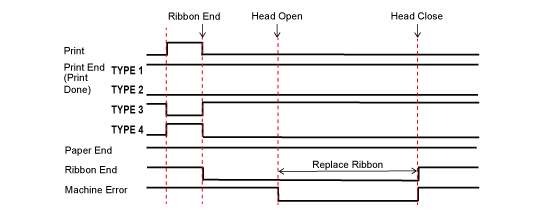

Ribbon End

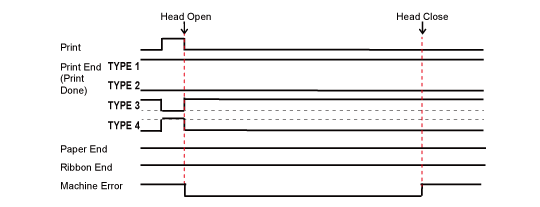

Machine Error

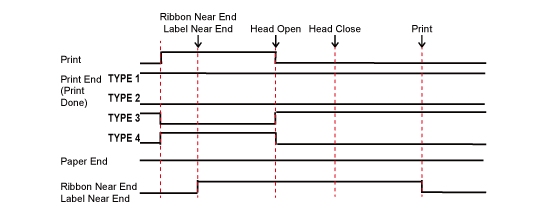

Ribbon Near End/Label Near End

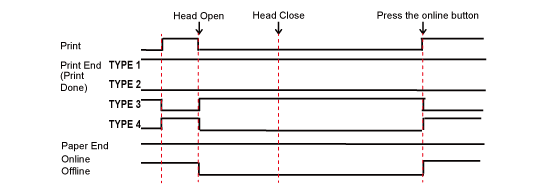

Online/Offline
If RFID Mode Is Enabled (RFID models only)
Item
Output Waveform
Basic Operation

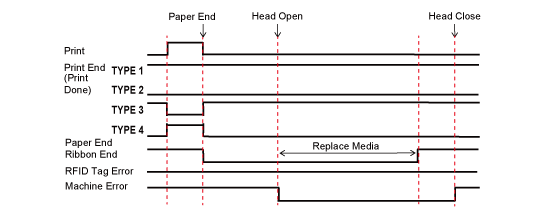

Paper End

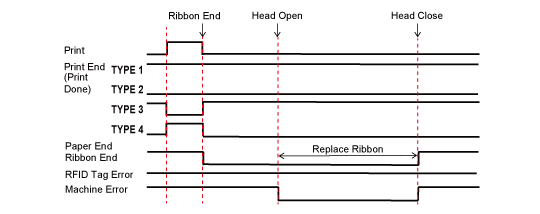

Ribbon End
