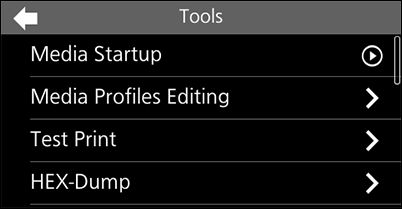

[Tools] Menu

The following settings are available in the [Tools] menu:

[Media Startup]

You can do batch settings for print settings that are appropriate for the type of media you are using.

Tap [Media Startup] and do the settings according to the on-screen instructions. In the final screen, tap [Apply] to apply the settings to the product.

The items that can be set are as follows: The results of executing Media Startup are reflected in each of the setting items.

•	[Printing] > [Media Type]

•	[Printing] > [Printing Mode]

•	[Printing] > [Speed]

•	[Printing] > [Sensor Type]

•	[Printing] > [Darkness]

•	Setting items under [Printing] > [Advanced] > [Calibrate]

•	Setting items under [Printing] > [Advanced] > [Label Waste Prevention]

• To cancel the settings, press the (Power/Home) button while you are doing the settings, or tap [Cancel] in the final screen.

[Media Profiles Editing]

Print settings can be registered as media profiles for each type of media so they can be easily accessed from the Home screen.

The setting items are as follows:

[Media Profiles Registration]

Register print settings as media profiles for each type of media. You can register a maximum of 5 media profiles.

The setting items that can be registered to media profiles are as follows:

•	[Printing] > [Media Type]

•	[Printing] > [Printing Mode]

•	[Printing] > [Speed]

•	[Printing] > [Sensor Type]

•	[Printing] > [Darkness]

•	Setting items under [Printing] > [Advanced] > [Calibrate]

•	Setting items under [Printing] > [Advanced] > [Label Waste Prevention]

To register a new profile, tap the items shown as [Non-registered]. To edit a registered media profile, tap the items that show that profile's name. Do the settings according to the on-screen instructions. Tap [Register] in the final confirmation screen to register the media profile.

An icon is added to the Home screen for the media profile that was registered. Tap the icon to apply the settings to the product.

• To cancel the settings, press the (Power/Home) button while you are doing the settings, or tap [Cancel] in the final screen. • If values that cannot be applied are included in the product settings at the time you are trying to apply a media profile, those values are not reflected.

[Delete Media Profiles]

Delete a registered media profile.

Tap the media profile to delete, and then tap in the confirmation message.

Deleting a media profile also deletes the icon for the media profile that is displayed on the Home screen.

[Test Print]

Perform a test print.

The setting items are as follows:

[Factory]

Perform the factory test print.

1.	Check and set the items as listed on the [Factory] menu.

2.	Tap to start the test print. Tap to pause the print.

To stop the test print, first pause the print and then tap .

　

The setting items are as follows:

Label Width

Shows the necessary media width of the test print.

The necessary media width is 101.6 mm (4") for [Large].

Pitch

Set the print position in the vertical direction.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting Range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the print position moves in the feed direction.

When you increase the setting value, the print position moves opposite the feed direction.

Offset

Set the tear-off position/cut position.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting Range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the stop position moves in the feed direction.

When you increase the setting value, the stop position moves opposite the feed direction.

Darkness Adjust

Fine tune the print darkness of the test print.

The setting range is from 0 to 99.

0 is the lightest and 99 is the darkest.

• You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The changes to the settings in this menu are linked and are changed with each of the test print settings under the [Test Print] menu. • The settings in [Pitch], [Offset], and [Darkness Adjust] are linked and are changed with the settings in the [Printing] > [Advanced] > [Adjustments] menu.

[Configure List]

Print the product setting information.

1.	Check and set the items as listed on the [Configure List] menu.

2.	Tap to start the test print. Tap to pause printing.

To stop the test print, pause printing, and then tap .

　

The setting items are as follows:

Category

Select the category of the list to print.

The options are as follows:

◦

[All]

◦	[Information]

◦	[Printing]

◦	[Interface]

◦	[Applications]

◦

[System]

Label Width

Shows the necessary media width of the test print.

The necessary media width is 50.8 mm (2") for [Small].

Label Length

Set the length of one piece of the media used for the test print.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	400 to 1,600 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	600 to 2,400 dots

Pitch

Set the print position in the vertical direction.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the print position moves in the feed direction.

When you increase the setting value, the print position moves opposite the feed direction.

Offset

Set the tear-off position/cut position.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the stop position moves in the feed direction.

When you increase the setting value, the stop position moves opposite the feed direction.

Darkness Adjust

Fine tune the print darkness of the test print.

The setting range is from 0 to 99.

0 is the lightest and 99 is the darkest.

• You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The changes to the settings in this menu are linked and are changed with each of the test print settings under the [Test Print] menu. • The settings in [Pitch], [Offset], and [Darkness Adjust] are linked and are changed with the settings in the [Printing] > [Advanced] > [Adjustments] menu.

[Configure QR]

Print the product setting information with a QR code.

1.	Check and set the items as listed on the [Configure QR] menu.

2.	Tap to start the test print. Tap to pause printing.

To stop the test print, pause printing, and then tap .

　

The setting items are as follows:

Category

Select the category of the list to print.

The options are as follows:

◦

[All]

◦	[Information]

◦	[Printing]

◦	[Interface]

◦	[Applications]

◦

[System]

Label Width

Shows the necessary media width of the test print.

The necessary media width is 50.8 mm (2") for [Small].

Label Length

Set the length of one piece of the media used for the test print.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	400 to 1,600 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	600 to 2,400 dots

Pitch

Set the print position in the vertical direction.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the print position moves in the feed direction.

When you increase the setting value, the print position moves opposite the feed direction.

Offset

Set the tear-off position/cut position.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the stop position moves in the feed direction.

When you increase the setting value, the stop position moves opposite the feed direction.

Darkness Adjust

Fine tune the print darkness of the test print.

The setting range is from 0 to 99.

0 is the lightest and 99 is the darkest.

• You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The changes to the settings in this menu are linked and are changed with each of the test print settings under the [Test Print] menu. • The settings in [Pitch], [Offset], and [Darkness Adjust] are linked and are changed with the settings in the [Printing] > [Advanced] > [Adjustments] menu.

[Paper Sensor]

Print the detection result of the media sensor level.

1.	Check and set the items as listed on the [Paper Sensor] menu.

2.	Tap to start the test print. Tap to pause printing.

To stop the test print, pause printing, and then tap .

　

The setting items are as follows:

Label Width

Shows the necessary media width of the test print.

The necessary media width is 50.8 mm (2") for [Small].

Label Length

Set the length of one piece of the media used for the test print.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	400 to 1,600 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	600 to 2,400 dots

Pitch

Set the print position in the vertical direction.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the print position moves in the feed direction.

When you increase the setting value, the print position moves opposite the feed direction.

Offset

Set the tear-off position/cut position.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the stop position moves in the feed direction.

When you increase the setting value, the stop position moves opposite the feed direction.

Darkness Adjust

Fine tune the print darkness of the test print.

The setting range is from 0 to 99.

0 is the lightest and 99 is the darkest.

• You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The changes to the settings in this menu are linked and are changed with each of the test print settings under the [Test Print] menu. • The settings in [Pitch], [Offset], and [Darkness Adjust] are linked and are changed with the settings in the [Printing] > [Advanced] > [Adjustments] menu.

[BD Address]

Print the BD address.

1.	Check and set the items as listed on the [BD Address] menu.

2.	Tap to start the test print. Tap to pause printing.

To stop the test print, pause printing, and then tap .

　

The setting items are as follows:

Label Width

Shows the necessary media width of the test print.

The necessary media width is 101.6 mm (4") for [Large].

Pitch

Set the print position in the vertical direction.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the print position moves in the feed direction.

When you increase the setting value, the print position moves opposite the feed direction.

Offset

Set the tear-off position/cut position.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the stop position moves in the feed direction.

When you increase the setting value, the stop position moves opposite the feed direction.

Darkness Adjust

Fine tune the print darkness of the test print.

The setting range is from 0 to 99.

0 is the lightest and 99 is the darkest.

• You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The changes to the settings in this menu are linked and are changed with each of the test print settings under the [Test Print] menu. • The settings in [Pitch], [Offset], and [Darkness Adjust] are linked and are changed with the settings in the [Printing] > [Advanced] > [Adjustments] menu.

[Head Check]

Perform the head check print.

1.	Check and set the items as listed on the [Head Check] menu.

2.	Tap to start the test print. Tap to pause printing.

To stop the head check print, pause printing, and then tap .

　

The setting items are as follows:

Label Width

Set the media width used for the head check print.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	320 to 832 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	480 to 1248 dots

Label Length

Set the length of one piece of the media used for the head check print.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	40 to 280 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	60 to 420 dots

Pitch

Set the print position in the vertical direction.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the print position moves in the feed direction (toward the front part of the media).

When you increase the setting value, the print position moves opposite the feed direction (toward the end part of the media).

Offset

Set the stop position of the media.

The setting range varies depending on the print resolution of the product.

The setting range is as follows:

Resolution	Setting range
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots

When you decrease the setting value, the stop position moves in the feed direction (toward the front part of the media).

When you increase the setting value, the stop position moves opposite the feed direction (toward the end part of the media).

Darkness Adjust

Fine tune the print darkness of the head check print.

The setting range is from 0 to 99.

0 is the lightest and 99 is the darkest.

• You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The changes to the settings in this menu are linked and are changed with each of the test print settings under the [Test Print] menu. • The settings in [Pitch], [Offset], and [Darkness Adjust] are linked and are changed with the settings in the [Printing] > [Advanced] > [Adjustments] menu.

[HEX-Dump]

Save the hex dump print data or dump data from the receive buffer to the USB memory.

The setting items are as follows:

[Hex Dump Mode]

Enable or disable the Hex Dump mode.

If you enable [Hex Dump Mode], the product prints the received data and at the same time creates a file of the received data inside "hexdump/".

If you return the setting to disabled, you can check the file on the screen.

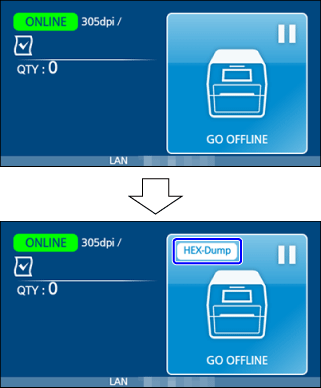

• If [Hex Dump Mode] is enabled, [HEX-Dump] appears on both the Online and Offline screens. • You can save a maximum of 10 received data files for each type of interface. Depending on the file size, the number of files you can save will be less than 10. • The details of the files created inside "hexdump/" of the product are as follows: BT00xx.bin Received data through Bluetooth. LAN00xx.bin Received data through LAN. NFC00xx.bin Received data through NFC. PIPE00xx.bin Received data through pipe. SCI00xx.bin Received data through RS-232C. USB00xx.bin Received data through USB. WIFI00xx.bin Received data through wireless LAN. • Even if you enable [Hex Dump Mode], it is disabled when you reboot the product.

[Buffer Dump]

Save the receive buffer data to the product.

You can use this if you have disabled the [Hex Dump Mode] menu.

Tap [START] on the startup screen to save the data to the product.

Save the receive buffer data to "buff/" in the product.

• The data files of the receive buffer are created for each type of interface. • The details of the file created inside "buff/" of the product are as follows: BT0001.bin The contents of the receive buffer for Bluetooth. LAN0001.bin The contents of the receive buffer for LAN. NFC0001.bin The contents of the receive buffer for NFC. PIPE0001.bin The contents of the receive buffer for pipe. SCI0001.bin The contents of the receive buffer for RS-232C. USB0001.bin The contents of the receive buffer for USB. WIFI0001.bin The contents of the receive buffer for wireless LAN. • If you perform the [Buffer Dump] again, the existing file will be overwritten.

[Log Files]

The setting items are as follows:

[Copy]

Copy the log files of the product to the USB memory.

Available only if you have connected the USB memory to the USB connector (Type A) on the back of the product.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

The procedure to copy the log files is as follows:

1.	Tap the file type from the list to copy.

◦

buff/

The buffer data saved after you perform the [Buffer Dump].

◦

hexdump/

The received data created through [Hex Dump Mode].

2.	Tap the file to copy. The selected file name is highlighted.

3.	Tap to copy the selected file to the USB memory.

• When [Hex Dump Mode] is enabled, it may take some time before the files appear.

[Remove]

Delete the log files of the product.

The procedure to delete the log files is as follows:

1.	Tap the file type from the list to delete.

◦

buff/

The buffer data saved after you perform the [Buffer Dump].

◦

hexdump/

The received data created through [Hex Dump Mode].

2.	Tap the file to delete. The selected file name is highlighted.

3.	Tap to delete the selected file.

• When [Hex Dump Mode] is enabled, it may take some time before the files appear.

[Print]

Print a hex dump of the log files of the product.

The procedure to print the log files is as follows:

1.	Tap the file type from the list to print.

◦

buff/

The buffer data saved after you perform the [Buffer Dump].

◦

hexdump/

The received data created through [Hex Dump Mode].

2.	Tap the file to print. The Offline screen appears.

3.	Tap [GO ONLINE] to start printing.

• Printing the contents of the file may use a lot of media.

• When [Hex Dump Mode] is enabled, it may take some time before the files appear.

[Reset]

Initialize the settings or data of the product.

The setting items are as follows:

[Data]

Initialize the data saved in the product.

The data that is initialized is the fonts and graphics registered in the product.

When you select [Data], a screen to confirm initialization appears.

Tap to execute the initialization. When the initialization is complete, the product restarts.

• Normally, it is not necessary to perform the initialization. Doing so could change the print conditions.

[Data & Settings]

Initialize the product's data and setting values.

The data that is initialized is the fonts and graphics registered in the product.

Select the setting items to be initialized.

The options are as follows:

User Reset

Initialize the data and setting values.

User Reset (-Interface)

Initialize the data and setting values, except the interface settings.

Factory Reset

Initialize to the factory default settings.

Factory Reset (-Interface)

Initialize the setting items, except the interface settings, to the factory default settings.

Interface

Initialize the data and setting values for the interface settings.

Printing

Initialize the data and setting values in the [Printing] menu.

When you select which items to initialize, a screen to confirm initialization appears.

Tap to execute the initialization.

When the initialization is complete, the product restarts.

[Settings]

Select the setting items to be initialized.

The options are as follows:

User Reset

Initialize the setting values.

User Reset (-Interface)

Initialize the setting values, except the interface settings.

Factory Reset

Initialize to the factory default settings.

Factory Reset (-Interface)

Initialize the setting items, except the interface settings, to the factory default settings.

Interface

Initialize the setting values for the interface settings.

Printing

Initialize the setting values in the [Printing] menu.

When you select which items to initialize, a screen to confirm initialization appears.

Tap to execute the initialization.

Restart the product after the initialization.

[Profiles]

Manage the customized profile of the product settings.

The current profile name is shown in the [Load] and [Save] menus.

The setting items are as follows:

[Delete]

Delete a registered profile.

Not available if no profile is registered.

The procedure is as follows:

1.	Tap the profile to be deleted.

2.	Tap on the message.

The profile name is deleted from the list.

[Load]

Import a registered profile.

Not available if no profile is registered.

The procedure is as follows:

1.	Tap the profile to be loaded.

2.	Tap on the message.

[Save]

Overwrite and save the current product settings to a registered profile.

Not available if no profile is registered.

The screen shows a list of the profiles registered in the product.

The procedure is as follows:

1.	Tap the profile to be overwritten.

2.	Tap on the message.

[Save as]

Register the current product settings as a new profile.

Enter a name for the profile to be registered as.

You can enter a maximum of 32 characters. You can use alphabet (capital and small letters), numbers and symbols.

Tap on the on-screen keyboard to confirm.

The new profile name appears on the [Save], [Load] and [Start with] lists.

[Start with]

Select the profile to be loaded at product startup.

Not available if no profile is registered.

The procedure is as follows:

1.	Tap the profile to be loaded at product startup.

2.	Tap on the message.

[Service]

These are the setting items for service.

Strictly for SATO authorized service personnel use.

[Factory]

These are the setting items for factory.

Strictly for SATO authorized service personnel use.

[Wi-Fi Site Survey]

Make a survey of the wave strength for each access point and display or print the survey results.

This information is shown only when the optional wireless LAN/Bluetooth kit is installed.

The options are as follows:

SiteSurveyDisp.

Shows the wave strength for each access point.

SiteSurveyPrint

Prints the wave strength for each access point.

[Install Certificates]

Install certificates used for Wi-Fi authentication and for HTTPS.

Available only if you have connected the USB memory to the USB connector (Type A) on the back of the product.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

The setting items are as follows:

HTTPS

Installs the HTTPS certificates from the USB memory.

Wi-Fi Root CA

Installs the Wi-Fi Root CA certificates from the USB memory.

Wi-Fi Client

Installs the Wi-Fi client certificates from the USB memory.

Wi-Fi Private Key

Installs the Wi-Fi private key from the USB memory.

EAP-FAST PAC File

Installs the EAP-FAST PAC file from the USB memory.

FTPS

Installs the FTPS certificates from the USB memory.

The procedure to install the certificates and PAC files is as follows:

1.	Save the certificate files to the USB memory’s root folder.

Acceptable file extensions are as follows:

◦	.pem, .crt, .cer, .der for Root CA and client certificate in PEM or DER format

◦	.pfx and .p12 for client certificates in PKCS #12 format

◦	.prv and .key for private keys in PEM/PKCS #8 format

◦	.pac for PAC files

2.	Insert the USB memory into the USB connector (Type A) on the back of the product.

3.	Go to the [SETTINGS] > [Tools] > [Install Certificates] menu.

4.	Tap the certificate you want to install. Refer to the item description above.

5.	Tap the certificate file from the list.

[Delete Certificates]

Delete certificates used for Wi-Fi authentication and for HTTPS.

HTTPS

Deletes the installed HTTPS certificates.

Wi-Fi Root CA

Deletes the installed Wi-Fi Root CA certificates.

Wi-Fi Client

Deletes the installed Wi-Fi client certificates.

Wi-Fi Private Key

Deletes the installed Wi-Fi private key.

EAP-FAST PAC File

Deletes the installed EAP-FAST PAC file.

FTPS

Deletes the installed FTPS certificates.

The procedure to delete the certificates and PAC files is as follows:

1.	Go to the [SETTINGS] > [Tools] > [Delete Certificates] menu.

2.	Tap the certificate you want to delete. Refer to the item description above.

3.	Tap on the message.

[Clone]

Copy the current product settings and installed data to a USB memory.

Available only if you have connected the USB memory to the USB connector (Type A) on the back of the product.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

This function is used for taking the settings of an existing product and installing them in a new product, or when you are setting up multiple products with the same settings.

The options are as follows:

Excl. LAN/Wi-Fi/IP/Bluetooth

Copy the product settings and data, excluding network information and Bluetooth device name, to the USB memory. Select this when you are setting up multiple products, which have been connected via a network, with the same product settings.

Incl. LAN/Wi-Fi/Bluetooth

Copy the product settings and data, including network information (excluding the IP address) and Bluetooth device name, to the USB memory. Select this when you are setting up multiple products, which are to be connected to the same network, with the same product settings.

Incl. LAN/Wi-Fi/IP/Bluetooth

Copy the product settings and data, including network information (including the IP address) and Bluetooth device name, to the USB memory. Select this to take the settings of a product, that is being replaced, and install them in a new product.

• The settings are saved in a .pkg file format. You cannot open it in a text editor to check or edit the data. • To apply the settings to a product, save the .pkg file in the root folder of a USB memory, and then insert it into the product.

[AutoClone Setting]

The auto-clone function automatically saves the product's settings and installed data, to the USB memory, whenever the settings are changed. Insert this USB memory into the intended product to recover the saved settings and data.

Use the USB connector (Type A) inside the product to execute this function (to save the settings and data). Use the USB connector (Type A) on the back of the product to recover the saved settings and data.

• We recommend a USB memory with a capacity of 4 GB or more. • The .pkg file that was created using this function cannot be copied to another USB memory and used.

The setting items are as follows:

[Enable]

Enable or disable the auto-clone function.

This can only be set when a USB memory, which has been formatted by using the [Format USB drive] menu is installed to the USB connector (Type A) inside the product.

[Format USB drive]

Format the USB memory that is installed to the USB connector (Type A) inside the product so you can use the auto-clone function.

Not available when [AutoClone Setting] > [Enable] is enabled.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory. • Formatting a USB memory deletes all the data on the USB memory. Save any necessary data to a separate location in advance.

[Logging Function]

Save the log data.

The setting items are as follows:

[Enabled]

Enable or disable the logging function.

The options are as follows:

Enable the logging function. When this function is enabled, the log data is saved when powering off the product.

Disable the logging function.

• When this function is enabled, log data is saved when powering off, so it may take some time to power off the product. Wait until the product is powered off. • While the log data is being saved, a message that says "Log Saving" appears on the screen. • The product stores log data for the last five times the product was powered off. • The types of log data that are saved are as follows: ◦ Key events ◦ Analysis status ◦ System logs and settings ◦ Shared memory (including receive buffer)

[Additional Log]

Set the additional logs to be stored.

Available only when the optional wireless LAN/Bluetooth kit is installed and the [Wi-Fi] > [Enabled] menu is enabled.

The setting item is as follows:

Wi-Fi Log Enable

Enable or disable the Wi-Fi related log function.

• A message prompting you to restart the product will appear on the Home screen if you have made any changes. In such a case, reboot the product to apply the settings.

[Save]

Save the log data to the USB memory.

Available only if there is log data in the product and if you have installed the USB memory.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

Tap to copy the log data to the USB memory.

• The saved log data is strictly for the use of SATO authorized service personnel.

[Remove]

Tap to delete the log data.

[Startup Guide]

Enable or disable the startup guide.

When this is enabled, the startup guide appears when you power on the product.

---

Related Topics

Settings Mode Operations

List of Initial Values

Memory of the Product

Setting Value Input

Powering Off the Product

[Unit]
