Loading the Ribbon

View the video here (it has no audio).

• The print head and its surroundings are hot after printing. Be careful not to get burned. • Touching the edge of the print head with your bare hand could cause injury.

• Use our specified supply products for the product, for optimum print quality. • Before loading the ribbon to the product, insert one core adapter into the carbon ribbon and one into the ribbon core.

　

View the video below for the procedure.

1.	Press the cover open latch (1) to open the top cover (2).

2.	Pull the (ribbon cover open) marks (3) toward the front to open the ribbon unit (4) toward the front.

3.	Load the ribbon core in order into the ribbon unit.

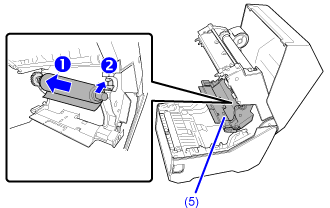

4.	Load the carbon ribbon in order into the ribbon cover (5).

5.	Pull out some carbon ribbon and tape it to the ribbon core , and then close the ribbon cover .

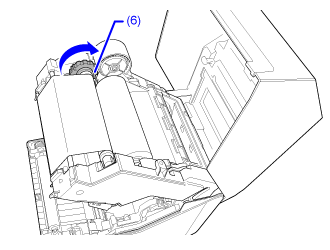

6.	Turn the dial (6) to rewind the carbon ribbon a few times.

• Be sure to rewind the ribbon so that it is centered on the ribbon core.

7.	Close the top cover.

Push both ends of the top cover, and close it firmly until it clicks.

• When closing the top cover, be careful not to pinch your fingers.

---
