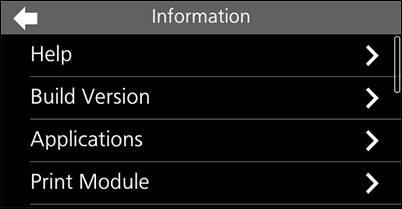

[Information] Menu

The following settings are available in the [Information] menu:

[Help]

Shows the guidance video.

You can view the video for loading the media and ribbon, the cleaning method and replacement method of consumables.

The items are as follows:

[Install Paper]

Shows the video for loading the media.

The items are as follows:

[Roll]

Shows the video for loading the media roll.

The items are as follows:

Standard

Shows the video for loading the media roll (standard specifications).

Cutter

Shows the video for loading the media roll (cutter specifications).

Dispenser

Shows the video for loading the media roll (dispenser specifications).

[Fanfold]

Shows the video for loading the fan-fold media.

The items are as follows:

Standard

Shows the video for loading the fan-fold media (standard specifications).

Cutter

Shows the video for loading the fan-fold media (cutter specifications).

[Label Waste Prevention]

Shows the video for loading media when the Label Waste Prevention function is enabled.

The items are as follows:

[Use Ribbon]

Shows the video for loading media when the Label Waste Prevention function is enabled for thermal transfer mode.

The items are as follows:

Standard

Shows the video for loading media when the Label Waste Prevention function is enabled (standard specifications).

Cutter

Shows the video for loading media when the Label Waste Prevention function is enabled (cutter specifications).

[Direct Thermal]

Shows the video for loading media when the Label Waste Prevention function is enabled for direct thermal mode.

The items are as follows:

Standard

Shows the video for loading media when the Label Waste Prevention function is enabled (standard specifications).

Cutter

Shows the video for loading media when the Label Waste Prevention function is enabled (cutter specifications).

[Install Ribbon]

Shows the video for loading the ribbon.

[Replace Paper]

Shows the video for replacing the media.

The items are as follows:

[Roll]

Shows the video for replacing the media roll.

The items are as follows:

Standard

Shows the video for replacing the media roll (standard specifications).

Cutter

Shows the video for replacing the media roll (cutter specifications).

Dispenser

Shows the video for replacing the media roll (dispenser specifications).

[Fanfold]

Shows the video for replacing the fan-fold media.

The items are as follows:

Standard

Shows the video for replacing fan-fold media (standard specifications).

Cutter

Shows the video for replacing fan-fold media (cutter specifications).

[Replace Ribbon]

Shows the video for replacing the ribbon.

[Replace Head]

Shows the video for replacing the print head.

[Replace Platen]

Shows the video for replacing the platen roller.

The items are as follows:

Standard

Shows the video for replacing the platen roller (standard specifications).

Linerless

Shows the video for replacing the platen roller (linerless specifications).

[Cleaning]

Shows the video for cleaning the product.

The items are as follows:

Standard

Shows the video for cleaning procedures (standard specifications).

Linerless

Shows the video for cleaning procedures (linerless specifications).

[Build Version]

Shows the product's version and other information.

Name

Shows the build version.

Date

Shows the build date.

Checksum

Shows the checksum of the build version.

Kernel Version

Shows the kernel version.

Boot Version

Shows the boot version.

[Applications]

Shows the printer language, etc., and versions of applications that are installed on the product.

[Installation Log]

Show or clear the installation log data in the product.

The setting items are as follows:

Press the [CLEAR] to clear the selected log data.

• This screen does not appear if there is no log data in the product.

[RPM log]

Shows a list of RPM log files containing three sections: installed, updated and obsolete.

The RPM log file is created after installing a pkg-file containing rpm-files.

[System Restore]

Shows the system restore log.

The system restore log file is created after a pkg-file is installed that makes it impossible to do panel operations on the product.

[Print Module]

Shows information related to the print module in the product.

The item is as follows:

Main

Shows the Main firmware information.

[Sensor Module]

Shows information related to the sensor module in the product.

The items are as follows:

Boot

Shows the Boot firmware information.

Main

Shows the Main firmware information.

[FPGA Version]

Shows the FPGA version of the product.

[Counters]

Shows information about the product's counter.

• Only SATO authorized service personnel are permitted to clear the counter.

The setting items are as follows:

[Head]

Shows information about the counter for the product's head.

The items are as follows:

Life

Shows the current print distance.

Head 1

Head 2

Head 3

[Head 1] shows the current print distance. When you replace the print head, the value of [Head 2] appears in [Head 3] and the value of [Head 1] appears in [Head 2]. [Head 1] will start to count from 0 again.

[Cutter]

Shows the current number of cuts.

[LAN]

Shows the address of the LAN interface.

The items are as follows:

LAN IPv4 Address

Shows the IPv4 address of the LAN.

LAN IPv6 Address

Shows the IPv6 address of the LAN.

LAN MAC

Shows the MAC address of the LAN.

[Wi-Fi]

Shows the address of the wireless LAN interface.

This information is shown only when the optional wireless LAN/Bluetooth kit is installed.

The items are as follows:

Wi-Fi IPv4 Address

Shows the IPv4 address of the wireless LAN.

Wi-Fi IPv6 Address

Shows the IPv6 address of the wireless LAN.

Does not appear when Wi-Fi Direct is active.

Wi-Fi MAC

Shows the MAC address of the wireless LAN.

Wi-Fi Region

Shows the region information of the wireless LAN.

Wi-Fi Status

Shows the status of the wireless LAN.

[Wi-Fi Direct]

Shows the connection information of Wi-Fi Direct.

Appears only when the optional wireless LAN/Bluetooth kit is installed and you are connected using Wi-Fi Direct.

[Wi-Fi Versions]

Shows the version of the wireless LAN.

This information is shown only when the optional wireless LAN/Bluetooth kit is installed.

[Bluetooth]

Shows the information of the Bluetooth connection.

This information is shown only when the optional wireless LAN/Bluetooth kit is installed.

[USB Serial]

Shows the USB serial number.

• The USB serial number of the product can also be checked by swiping to display a panel.

[Regulatory]

Shows information about authentication of the product.

[Online Manual]

Shows the QR codes for the product's operator manual (this manual).

---
