Loading the Media Roll: Continuous/Tear-Off/Linerless Tear-Off Mode

View the video here (it has no audio).

•	For Continuous/Tear-Off Mode

•	For Linerless Tearoff Mode

• The print head and its surroundings are hot after printing. Be careful not to get burned. • Touching the edge of the print head with your bare hand could cause injury.

　

View the video below for the procedure.

Continuous/Tear-Off Mode

Linerless Tearoff Mode

1.	Press the cover open button (1) to open the top cover (2).

2.	If the dispenser unit is out, press the dispenser roller release button (3) as you fold it in.

3.	Spread the media guide (4), and then load the media roll.

a.	Load the media roll from above so the print side faces the print head.

b.	If you are using a coreless label roll (media roll with no core), lower the media guide lock (5) to fix the width of the media guide.

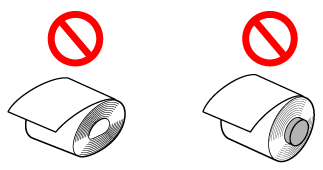

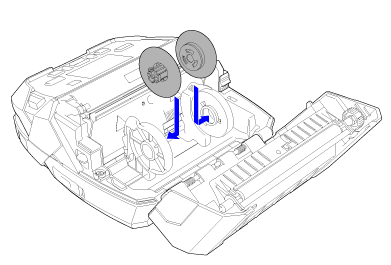

• If the media roll is difficult to load, rewind the media roll so that the sides of the roll become even. • If you are using the same width of media roll continuously, it is convenient to lower the media guide lock (5) to fix the width of the media guide. • If you are using media with a 1-inch core, then replace the media guide core that is installed on the media guide with the 1-inch label core provided. A 0.75-inch media guide core is installed as standard. • Coreless label rolls may be deformed by impact or other factors. If you use a deformed media roll, it could rub against the media compartment of the product, which may affect print quality. Shape the media roll before loading it into the product. Also, be careful not to fold the center of the media roll when loading it on the projections of the media guide.

4.	Close the top cover.

Push both ends of the top cover, and close it firmly until it clicks.

• When closing the top cover, be careful not to pinch your fingers.

• Eject the media roll in the illustrated direction.

5.	Press the button (FEED) to feed the media.

6.	Press the button (ONLINE) to go to Online mode.
