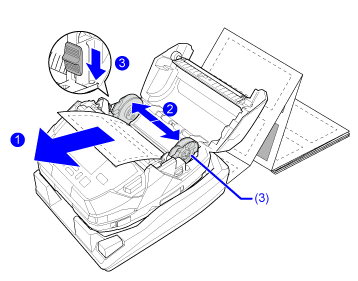

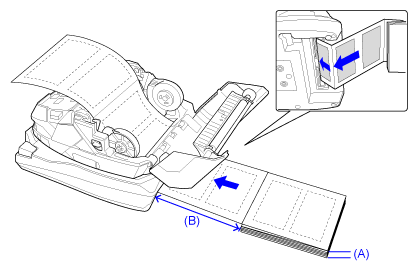

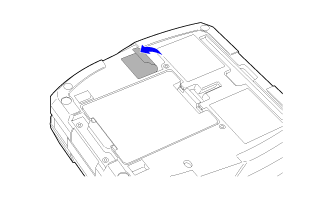

TOP > Loading Media > Loading the Media > Loading the Fan-fold Media (When Using the 1Bay Charging Cradle (Option)) Loading the Fan-fold Media (When Using the 1Bay Charging Cradle (Option)) View the video here (it has no audio). The media is fed from the bottom of the product, so you need to keep the product high enough off the tabletop. This section describes the procedure for using the 1Bay Charging Cradle (option). • The print head and its surroundings are hot after printing. Be careful not to get burned. • Touching the edge of the print head with your bare hand could cause injury. • Fan-fold media is not available in dispenser mode since the perforated line affects the dispenser function. View the video below for the procedure. 1. Open the fan-fold media inlet on the bottom of the product. 2. Remove the black protective sheet marked CRADLE ACCESS from the bottom of the product. 3. Align the recess on the back side of the 1Bay Charging Cradle with the protrusions on the back of the product , and slowly lower the product onto the 1Bay Charging Cradle . 4. Press the cover open button (1) to open the top cover (2). 5. Insert the fan-fold media from the fan-fold media inlet. (A) Media height (from desk): Within 100 mm (3.94") (guideline)(B) Distance between the back side of the product and the media: The size of 1 fold of the media, or more (guideline) • Load the media so that the print side touches the print head.• The height may be limited depending on where media is placed.• When drawing the media from under the desk, not from the position on the same desk which the rear side of the product is placed, place the media so as not to obstruct the printing operation.• Place the AC adapter and cord so they do not touch the media.• Confirm operations, in advance, for the operating environment, such as the type and size of media being used, environmental conditions, installation location.6. Pull out the fan-fold media that was inserted from the bottom , adjust the media guide (3) to the width of the fan-fold media , and then lower the media guide lock . 7. Close the top cover. Push both ends of the top cover, and close it firmly until it clicks. • When closing the top cover, be careful not to pinch your fingers. • Eject the media in the illustrated direction.8. Press the button (FEED) to feed the media. 9. Press the button (ONLINE) to go to Online mode. Related TopicsCharging Using the 1Bay Charging Cradle (Option) Back to top
