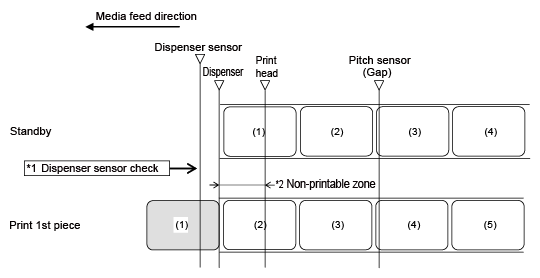

TOP > Adjusting the Product > Flow of Printing Operations > Operations in Dispenser Mode > Dispenser Mode, No Backfeed, with Media Sensor Enabled Dispenser Mode, No Backfeed, with Media Sensor Enabled Operation *1 The dispenser sensor confirms the dispensing condition and the product does not perform the next operation until the label is dispensed. *2 Because backfeeding is not done, the media in this area is non-printable. • The figure above shows the reference position when the Gap sensor is used. Timing Chart (Without Head Check) Timing Chart (With Head Check) Back to top
