Media Sensor Positions and Media Stop Positions

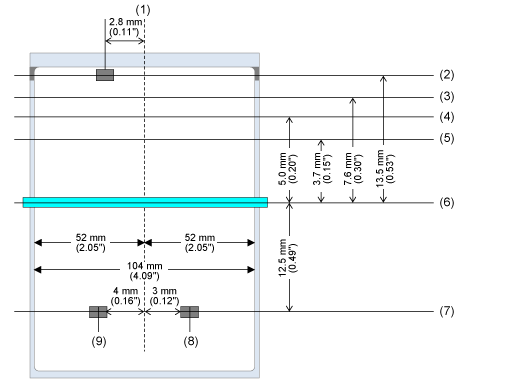

The positions of the media sensors and the media stop positions with the various print modes are as follows:
(1) Center position
(2) Dispenser sensor position
(3) Tear-off position
(4) Linerless cut position
(5) Dispensing position
(6) Print head position
(7) Gap/I-mark sensor position
(8) Gap sensor position
(9) I-mark sensor position
