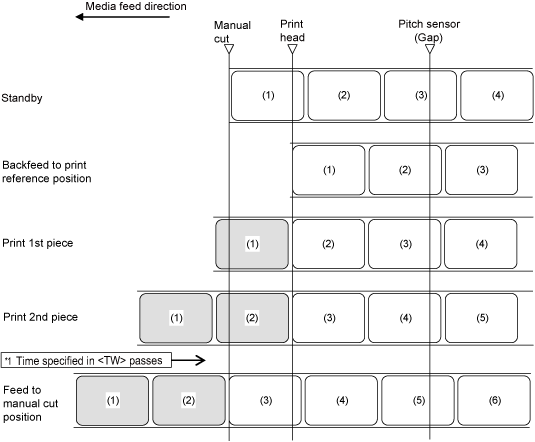

TOP > Adjusting the Product > Flow of Printing Operations > Operations in Tear-Off Mode > Tear-off Mode/Media Sensor Enabled Tear-off Mode/Media Sensor Enabled Operation *1 After printing, if the period specified in Option Waiting Time <TW> (initial value: 0 ms) has passed and if there is no print data remaining, the product will feed the media to the position for manual cutting. • The figure above shows the reference position when the Gap sensor is used. Timing Chart (When <TW> is 0) Without head check With head check Timing Chart (When <TW> is 500) Without head check With head check Back to top
