Loading the Fan-fold Media (When Using the Printer Stand (Option))

View the video here (it has no audio).

The media is fed from the bottom of the product, so you need to keep the product high enough off the tabletop. This section describes the procedure for using the Printer Stand (option).

• The printer stand has sharp edges. Be careful not to get injured. • After installing the product on the printer stand, hold the printer stand with your hands so it doesn't fall over while the product is being operated. • The print head and its surroundings are hot after printing. Be careful not to get burned. • Touching the edge of the print head with your bare hand could cause injury.

• Fan-fold media is not available in dispenser mode since the perforated line affects the dispenser function.

　

View the video below for the procedure.

1.	Open the fan-fold media inlet on the bottom of the product.

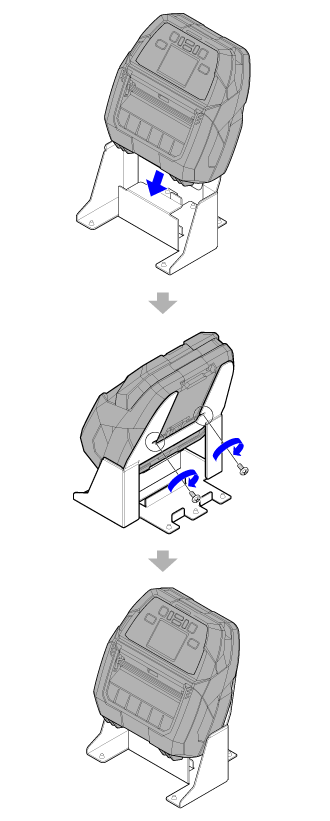

2.	Install the product on the printer stand and secure it with the 2 screws provided.

• The customer must prepare the Philips screwdriver. • You can install the AC adapter at the bottom of the printer stand.

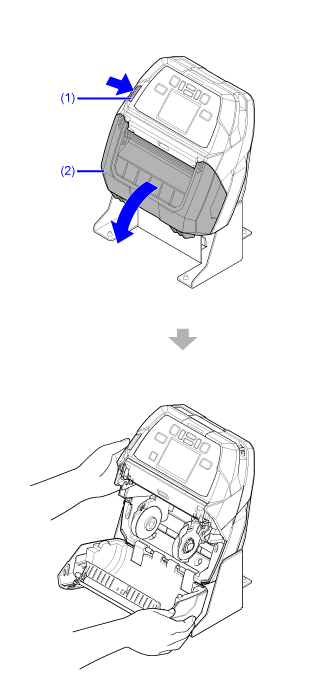

3.	Press the cover open button (1) to open the top cover (2).

• Hold the printer stand with your hands to prevent it from falling over.

4.	Insert the fan-fold media from the fan-fold media inlet.

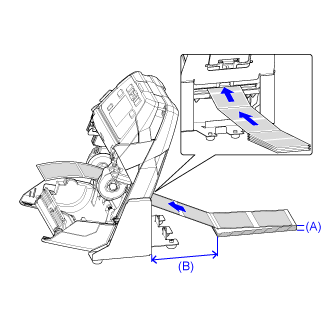

(A) Media height (from desk): Within 100 mm (3.94") (guideline)

(B) Distance between the back side of the product and the media: The size of 1 fold of the media, or more (guideline)

• Load the media so that the print side touches the print head. • The height may be limited depending on where media is placed. • When drawing the media from under the desk, not from the position on the same desk which the rear side of the product is placed, place the media so as not to obstruct the printing operation. • Place the AC adapter and cord so they do not touch the media. • Confirm operations, in advance, for the operating environment, such as the type and size of media being used, environmental conditions, installation location.

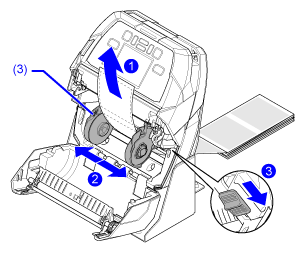

5.	Pull out the fan-fold media that was inserted from the bottom , adjust the media guide (3) to the width of the fan-fold media , and then lower the media guide lock .

6.	Close the top cover.

Push both ends of the top cover, and close it firmly until it clicks.

• When closing the top cover, be careful not to pinch your fingers. • Hold the printer stand with your hands to prevent it from falling over.

• Eject the media in the illustrated direction.

7.	Press the button (FEED) to feed the media.

8.	Press the button (ONLINE) to go to Online mode.
