TOP > Getting Started > Installing Accessories > Attaching the Hand Strap (Option)
Attaching the Hand Strap (Option)
You can carry the product around with one hand by attaching the hand strap (option).
1.

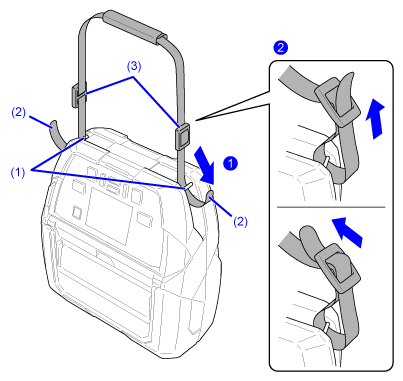

Run the hand strap (2) through the strap grooves (1) on the front of the product , and then run it through the hand strap adjustment buckles (3) (2 locations) .

•
Allow some slack in the strap as you run it through the adjustment buckles, and then tighten it to a secure length. Also, before using the strap, be sure to confirm that it will not slip out of the adjustment buckles. Otherwise, the product could fall off.
2.

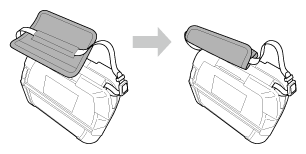

Tighten the fastening tape on the handle of the hand strap.
