Parts Identification

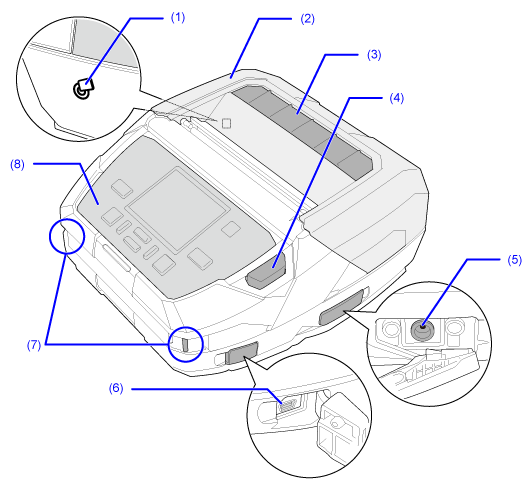

Front View

(1) NFC antenna location

(2) Top cover

(3) Window

You can check the amount of remaining media.

(4) Cover open button

(5) DC input connector (AC power connector)

Before connecting, make sure that the AC voltage of your region is in the range of AC 100 to 240 V, 50 to 60 Hz.

(6) USB connector (Mini-B)

To connect the product to the computer using the USB interface.

You can also use USB memory to get the product log data and setting information, and to install certificates.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

• To connect a USB memory to the product, you need a USB host cable (Mini-B).

(7) Strap groove

Attaching the shoulder strap (option) and the hand strap (option)

(8) Operator panel

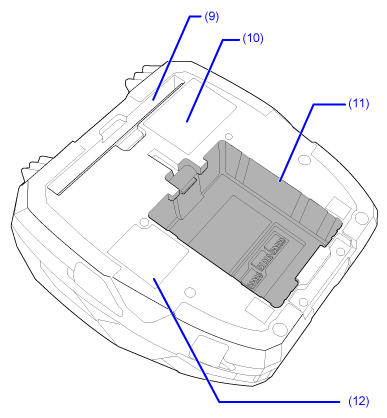

Bottom View

(9) Fan-fold media inlet

(10) Sticker

The product information, such as model name and serial number, is listed.

The 8-digit alphanumeric characters to the right of "S/N" are the serial number.

(11) Battery compartment

(12) Charging terminal for the 1Bay Charging Cradle (Option)

• The product is shipped with a black protective sheet marked "CRADLE ACCESS" on the terminal for the 1Bay Charging Cradle (option). Remove this sheet when charging using the 1Bay Charging Cradle.

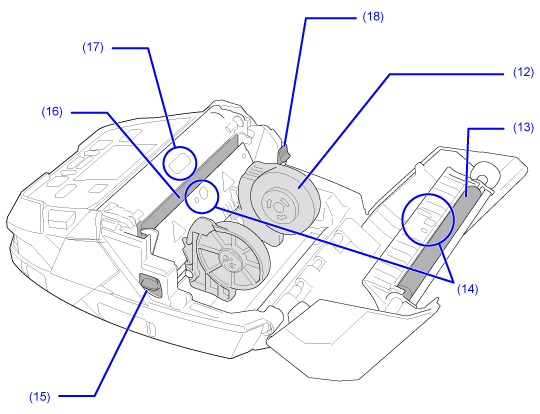

Internal View

(12) Media guide

(13) Platen roller (Consumables)

(14) Media sensors

(15) Dispenser roller release button

(16) Print head (Consumables)

(17) Dispenser sensor

(18) Media guide lock

• A platen roller is a component that feeds media. A print head is a component that prints on media. These components are for printing and need to be maintained regularly.

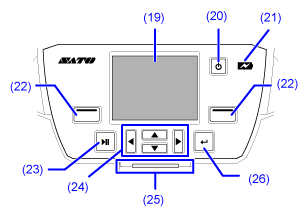

Operator Panel

(19) Display

(20) (power) button

To power on the product, press the (power) button until the LED indicator lights blue.

To power off the product, press the (power) button for more than 2 seconds, and then follow the on-screen instructions.

(21) Battery indicator

(22) Left/right select button

The functions differ according to the screen. The functions of the buttons are shown at the bottom of the screen.

Example 1: When in Offline mode

Left select button: Online, Right select button: Feed

　

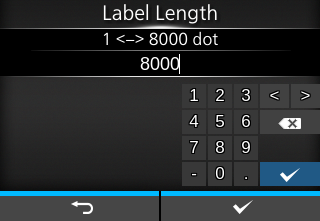

Example 2: Numeric input screen for settings menu

Left select button: Return to previous screen, Right select button: Save

(23) LINE button

Switches online/offline, and plays and pauses videos.

(24) Arrow buttons

Moves the cursor on the menu screens.

(25) LED indicator

(26) Enter button

Applies selected items and set values.

---
