Usable Media

• Use our specified supply products.

　

Type

•	Media roll (face-out)

•	Fan-fold media

　

Size

•	Continuous

Item	Description
Media Length	13 to 305 mm (0.51" to 12.01")
Media Length (With Liner)	16 to 308 mm (0.63" to 12.13")
Media Width	38 to 111 mm (1.5" to 4.37")
Media Width (With Liner)	41 to 114 mm (1.61" to 4.49") (media roll)/41 to 118 mm (1.61" to 4.65") (fan-fold media)

　

•

Tear-Off

Item	Description
Media Length	16 to 305 mm (0.63" to 12.01")
Media Length (With Liner)	19 to 308 mm (0.75" to 12.13")
Media Width	38 to 111 mm (1.5" to 4.37")
Media Width (With Liner)	41 to 114 mm (1.61" to 4.49") (media roll)/41 to 118 mm (1.61" to 4.65") (fan-fold media)

　

•

Dispenser

Item	Description
Media Length	16 to 254 mm (0.63" to 10")
Media Length (With Liner)	19 to 257 mm (0.75" to 10.12")
Media Width	38 to 111 mm (1.5" to 4.37")
Media Width (With Liner)	41 to 114 mm (1.61" to 4.49") (media roll)/41 to 118 mm (1.61" to 4.65") (fan-fold media)

　

•

Linerless

Item	Description
Media Length	16 to 257 mm (0.63" to 10.12")
Media Width	38 to 114 mm (1.5" to 4.49")

• For Linerless label, you need to set the product according to your print layout conditions. For details, contact your SATO reseller. • The supported label sizes and print quality vary depending on the output speed and media combination, and the product settings and operating environment. We recommend confirming operations in the operating environment in advance.

　

Roll Diameter (Media Roll)

•	Maximum φ67 mm (φ2.6")

•	Core diameter

Standard: φ19.05 mm (φ0.75")

1-inch media guide cores (accessory): φ26.9 mm (φ1")

　

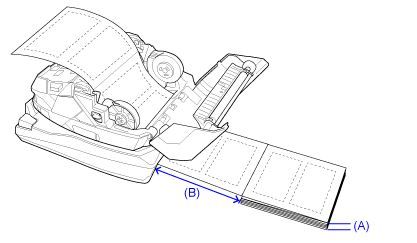

Height (Fan-fold Media)

(A) Media height (from desk): Within 100 mm (3.94") (guideline)

(B) Distance between the back side of the product and the media: Size of 1 fold of the media, or more (guideline)

• The height may be limited depending on where media is placed. • When drawing the media from under the desk, not from the position on the same desk which the rear side of the product is placed, place the media so as not to obstruct the printing operation. • Fan-fold media is not available in dispenser mode since the perforated line affects the dispenser function.

　

Thickness

58 to 190.5 μm (0.058 to 0.1905 mm)
