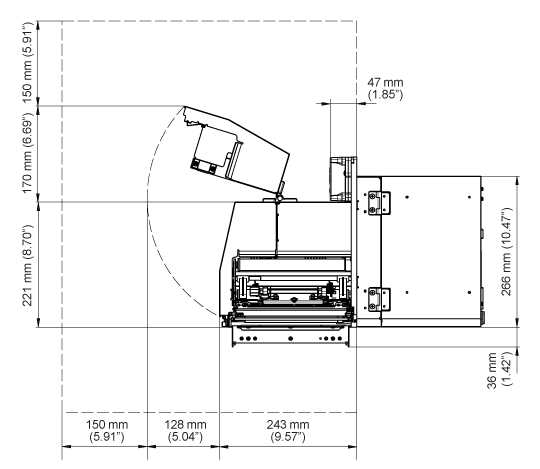

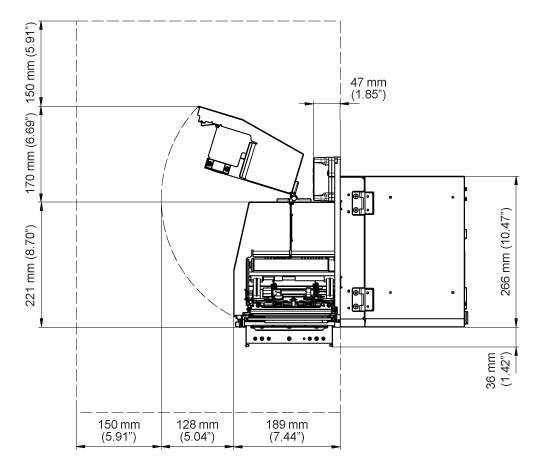

TOP > Getting Started > Installation > Installation Space > Media Dispensed View Media Dispensed View Make sure that there is sufficient space around the product so that the top cover can be fully opened when operating or cleaning the product, or replacing consumables. The dimensions of the media dispensed view of the product are as follows: S84NX • The figure above is the Standard/Left-hand type. If you are using the Opposite/Right-hand type, then the direction is the opposite. S86NX • The figure above is the Standard/Left-hand type. If you are using the Opposite/Right-hand type, then the direction is the opposite. Related Topics Product Orientation Back to top
