TOP > Getting Started > Installation > Installation Space > Top View
Top View
Make sure that there is sufficient space on the rear side of the product so that the rear housing cover can be fully opened during maintenance.
The dimensions of the top view of the product are as follows:

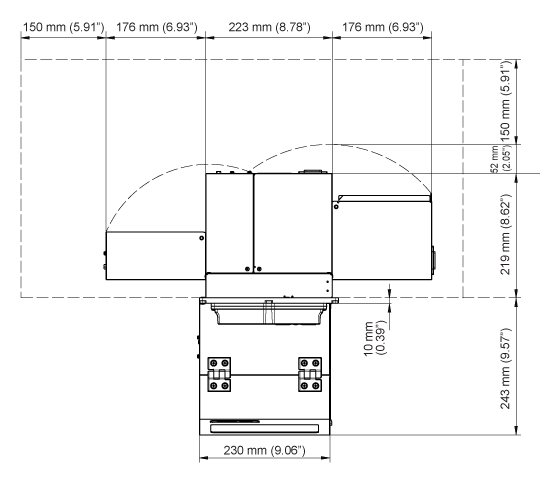

S84NX
•
The figure above is the Standard/Left-hand type. If you are using the Opposite/Right-hand type, then the direction is the opposite.

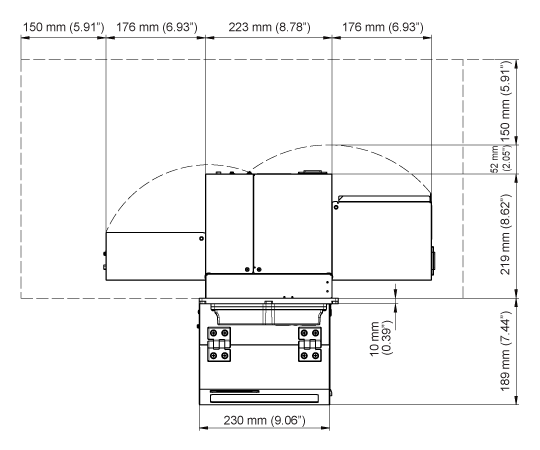

S86NX
•
The figure above is the Standard/Left-hand type. If you are using the Opposite/Right-hand type, then the direction is the opposite.

Related Topics
Product Orientation
