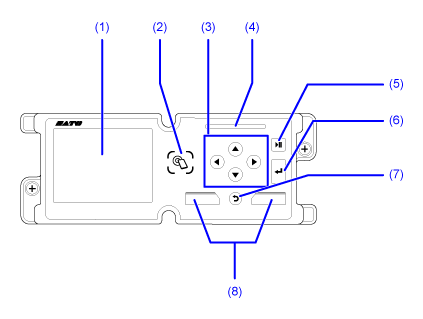

Parts Identification for the Operator Panel

(1) Display

(2) NFC antenna location

(3) /// Arrow buttons

Navigate the selection in the screen menu.

(4) LED indicator

(5) LINE button

Toggle between Online/Offline mode or playback/pause the video.

(6) Enter button

Confirm the selected item or setting value.

(7) Back button

Returns to the previous screen.

(8) Soft buttons

The functions change depending on the screen. The functions of the buttons are indicated on the bottom of the screen.

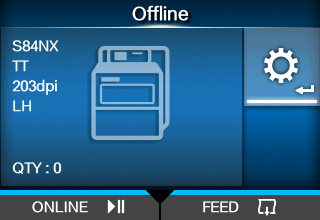

Example 1: In Offline mode

left soft button: ONLINE, right soft button: FEED

　

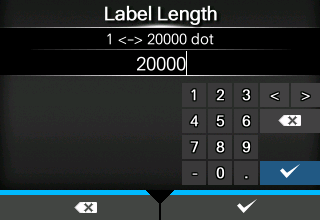

Example 2: The numerical value input screen of the Settings menu

left soft button: Delete one character, right soft button: Save
